Description

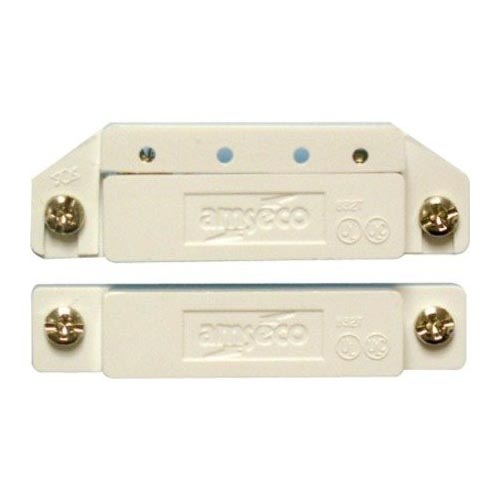

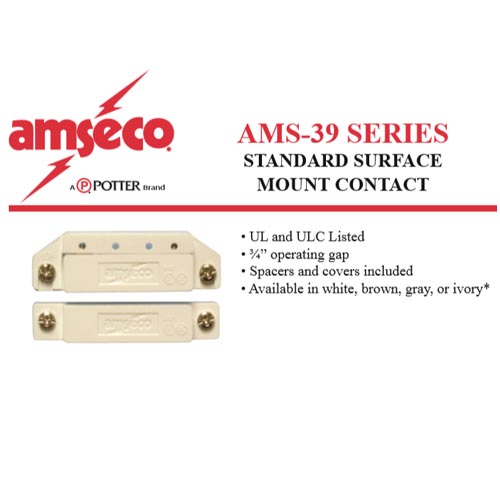

- The AMS-39 series is a robust , reliable and versatile choice for standard security monitoring applications.
- UL and ULC safety certifications for surface-mount magnetic contact for monitoring doors, windows, cabinets, and hatches, featuring a 3/4″ operating gap for reliable security on various access points.in N.O configurations.
- With durable plastic case, gold-plated switch, and included mounting hardware like screws and spacers for easy installation.
Features
- Application: Designed to secure a variety of openings including man doors, sliding doors, windows, cabinets, and hatches.
- Operating Gap: Features a standard 3/4 inch (19.05 mm) operating gap.
- Durable Construction: The molded case is made of UL listed plastic material, and the reed switch meets Military Specifications with gold-plated rhodium points, sealed to prevent moisture or oxidation.
- Reliability: Hermetically sealed reed switch with gold/rhodium plating for consistent performance, built to withstand moisture and oxidation.
Technical Information:
- Brand: Amseco
- Model: AMS-39W
- Color: White
- Contact Type: N.O. (Normally Open)
- Max. Carry Current: 1.0 Amp
- Max. Switching Current: 0.4 Amp
- Breakdown Voltage: 200 VDC
- Contact Rating: 10 VA
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Contact Resistance: 100m Ohm Max. (both)
- Operating Gap: 3/4″ (min.).
- Overall Length: Approximately 1-11/16 inches (43 mm).
- Height: Approximately 2-1/8 inches (54 mm).
- Width: Approximately 1/2 inch (12.7 mm).
- Depth: Approximately 41/64 inches (16.3 mm).
- Certification: UL and ULC Listed for safety and quality.
- Included: Comes with screws, covers, and spacers for installation.
