ATZ 3m-RED Cat 6 Ethernet (LAN) LSZH Cable

$27.80

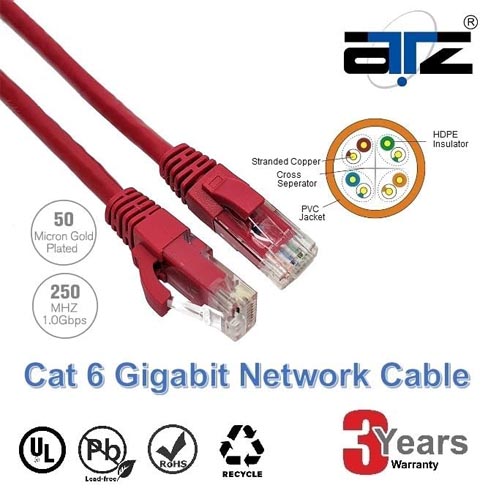

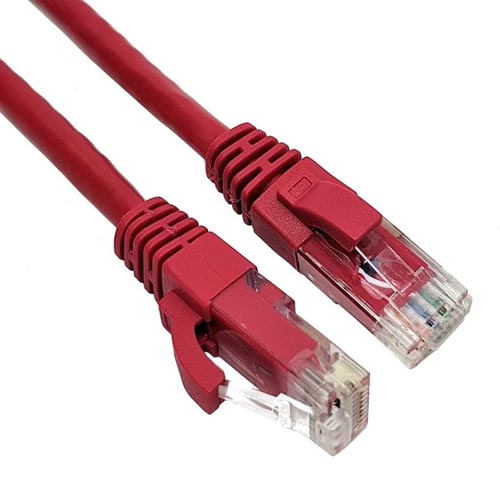

ATZ 3m-RED Cat 6 Gigabit Ethernet Lan LSZH Network Patchcord Cable – Network Cable, Cat 6 Ethernet Cable, Cat 6 lan cable, RJ45 Router Cable (Red, 3m)

  • Model: ATZ UTPCAT6.3M.RD
  • Category: CAT 6
  • Color: RED
  • Length: 3 Meters
  • Features: LSZH (Low Smoke Zero Halogen)

HS Code: 85444999

Country Of Origin: China

SKU: ITICLANB0CSFNQ58Z Categories: , , ,

Description

Cat 6 fixed length network patch cords are the perfect combination of value and performance. Available in a large assortment of colors and lengths, we have a cable to fit every situation. Each cable is made of 24AWG, pure copper listed pair conduits with 50-micron gold plated contacts, snagless design(which avoids tangles), with strain relief boots.

  • The LSZH cable connects all the hardware destinations on a Local area network, With snagless molded strain relief, this cable’s RJ45 tap is protected from being damaged during installation.
  • Features 50-micron gold plated RJ45 (male to male) connectors to ensure clear transmission.
  • Compliance Standards: Conform to ISO/IEC11801, ANSI/TIA/EIA/TIA- 56B Category 6.

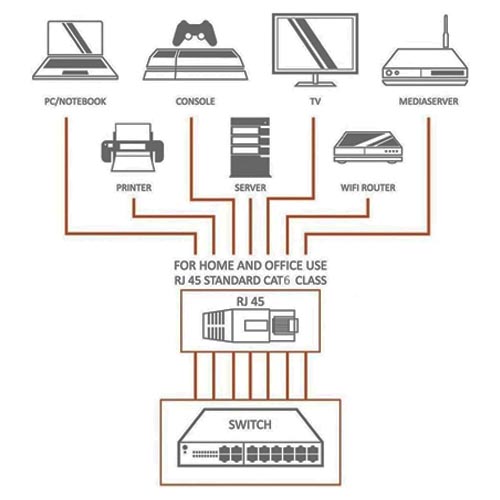

  • Designed For: Network Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels and other twisted-pair applications.
  • Applications: 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3); 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN; 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM; Voice.

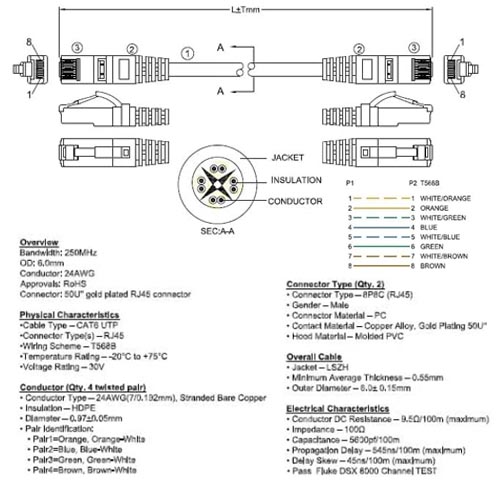

Performance:

  • Min. Insulation Resistance: 100M
  • DC Resistance Unbalance: Max 2%
  • Pair-to-Ground Capacitance Unbalance : Max 330PF/100KM
  • Input Impedance: 4-100Mhz: 100+/-15ohm | 100-250Mhz: 100+/-22ohm
  • Mean Characteristic Impedance@100Mhz: 100+/-5ohms
  • Nominal Velocity of Propagation (NVP): 68+/-2%
  • Propagation Delay @ 100Mhz: >=537.6 ns/100M
  • Propagation Delay Skew: Max >=45ns/100M
  • Insertion loss: 4-250Mhz IEC61156-6
  • Return loss: 4-250Mhz IEC61156-6
  • NEXT: 4-250Mhz IEC61156-6
  • Working Temperature:-5°C~+50°C
  • Storage Temperature:-20°C~+60°C

Technical Information:

  • Brand: ATZ | Manufacturer: Allied Asia Resources
  • Item model number ‏ : ‎ ATZ UTPCAT6.3M.RD
  • Color: RED
  • Connector type: RJ45
  • Cable type: Ethernet
  • Connector gender: Male-to-Male
  • Data transfer rate: 0.1 Gigabits Per Second
  • Conductor Materials: Bare Copper Wire Stranded 7/0.2mm, 24AWG
  • Outer Dia.: 6.0mm
  • Jacket: LSZH
  • Insulation: HDPE
  • TIA/EIA; UL Listed; CSA Listed, RoHS Compliant
  • Compatible devices: Modem, Router
  • Special features: Braided
  • Ethernet cable category: Cat 6
