Description

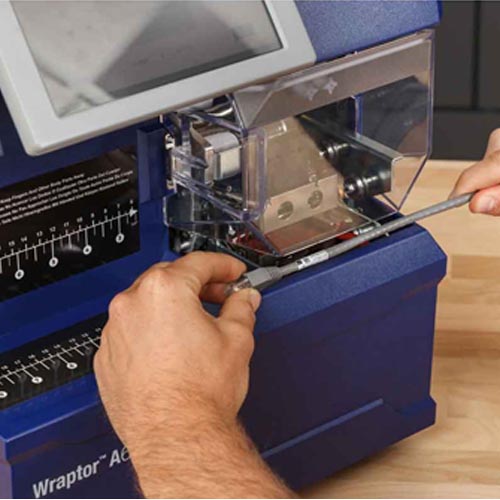

- The Wraptor™ A6500 Wrap Printer Applicator is a print and apply machine that turns a series of labor-intensive, inefficient tasks into a modern automated process.
- Prints and applies labels to wires in less than five seconds.
- Uses high-performance self-laminating materials and provides a tight wrap.
- Includes a full-color responsive touch screen and an icon-based user interface for ease of use.
- Enhanced connectivity with three USB ports and 32GB of internal memory to store commonly used job files.
- Ships with Brady Workstation Design and Print Pro — Product and Wire ID Software with built-in templates for fixed text or free-form label design options.
- Test before you buy: Brady can print and apply labels to a sample of your wire. Contact Technical Support for more information.
Feature
- Intended Use: General wire and cable labeling.
- Application Mechanism: Standard wrapping mechanism/jaws.
- Cable Protection: Standard.
- Wire Diameter Range: 0.06 in to 0.6 in (approx. 1.52 mm to 15.24 mm).
- Certification/Testing: Standard certifications.
- Calibration: Requires manual calibration for optimal performance.
Technical Information:
- Brand Name: Brady®
- Trade Name: Wraptor™ A6500
- Model: A6500, WRAPTOR
- Application: Data and Telecommunications Labeling, Electrical Labeling, Wire and Cable Labeling
- Shipped With Battery: Yes
- Connectivity Options: Ethernet, USB
- Device Connectivity: PC connected, Stand-alone
- Display Type: Color Touch Screen
- Memory: 32 GB, expandable through USB
- Plug Type:US
- Power Supply Voltage: 100 – 240 V @ 50 – 60 Hz
- Battery Type: Lithium-manganese Battery
- Operating System: Windows® 10, Windows® 7, Windows® 8
- Barcode Symbologies – 2D: Data Matrix, QR code
- Barcode Symbologies – Linear: Codablock A, Codablock F, Code 128A, Code 128B, Code 128C, Code 39, Code 93, EAN-13, EAN-8, Interleaved 2 of 5, MSI, Plessey, UPC-A, UPC-E
- Calibration Required? : Yes
- Color Printing Capability: Single Color
- Font Styles: Arial, Arial 65, Courier New, Tahoma, Times New Roman
- Application Cycle Time: 5 seconds
- Maximum Labels per Day: 7000
- Maximum Label/Tape Width: 2 in
- Maximum Print Speed: 3 in/s
- Minimum Label Length: 0.75 in
- Maximum Printed Label Length: 1.63 in
- Print Resolution: 300 dpi
- Print Technology: Thermal Transfer
- Progamming Language: BPL (Brady Programming Language)
- Compatible Media: WRAP-
- Label Material Types: Nylon Cloth, Polyimide, Self-laminating Vinyl
- Materials Supported: Custom, Die-cut
- Maximum Print Width: 2 in
- Wire Diameter Range: 0.06 in – 0.6 in
- Software Compatibility: Brady Workstation, LabelMark
- Includes: Brady Workstation Design & Print Pro Insert, R4302 Ribbon, Roll of WRAP-4-427, USB Cable, Wraptor™ Print Driver
- Warranty: 1 Year
- California Prop 65: WARNING: Risk of cancer from exposure to Nickel and reproductive harm from exposure to Bisphenol A.
- REACH SVHC Status: Part contains an SVHC
- REACH Candidate List Date: 25 June 2025
- Country of Origin: Malaysia
- ECCN (Export Commodity Control Number): EAR99
- HTS Code (Harmonized Tariff Schedule) : 8443.32.1050
- RoHS Compliance Status: Compliant with Directive 2011/65/EU and 2015/863
- UNSPSC: 45101519
- Dimensions: 17.75 in H x 14.5 in W x 22.5 in D | Weight: 75 lb
