CLETOP Original Type A Fiber Connector Cleaner White

$325.00

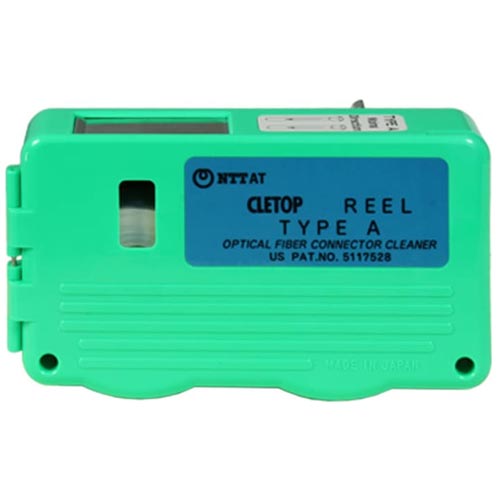

CLETOP Original 8500-10-0011MZ –  Type A   Fiber Connector Cleaner

  • Cletop Series – Original version (proven reliability)
  • Compact and light weight design
  • Simple push lever shutter operation
  • Cost effective replacement cleaning tape reels

HS Code: 82034090

Country Of Origin: Japan

Resources:

SKU: FONFCC10D0011MZ Categories: , , , ,

Description

  • CLETOP Cassette Cleaner Options CLETOP Series – Original version (proven reliability) Type A – Designed for 1.25 mm and 2.5mm ferrules (SC, FC, ST, D4, MU, LC) Type B – Cleans SC, SC2, FC, ST, DIN, D4, MU, LC, MT, MPO/MTP without guide pins, MT-RJ without guide pins Type MPO – Accepts MPO/MTP connectors with guide pins Type MT-RJ – Accepts MT-RJ connectors with guide pins
  • The CLETOP optical fiber connector cleaners from AFL are rugged handheld tools for cleaning fiber optic connector end-faces.
  • The CLETOP cleaners quickly and effectively clean a variety of connectors. CLETOP cleaners are a safe cleaning option without the need for isopropyl alcohol, which is toxic and flammable.
  • CLETOP cleaners have refillable cleaning tapes with 400 cleans per tape, making them ideal for lab and field use. The simple push-button shutter operation makes cleaning connectors quick and easy.

Features

  • Simple push-button shutter application.
  • Compact lightweight design.
  • Easily replaceable cost-effective tape cartridges.
  • Over 400 wipes per tape Applications.
  • Ideal for labs, assembly lines, and field use.
  • Cleans a wide variety of connector types.
  • Excellent anti-static properties for static sensitive applications.

Technical Information:

  • Brand: NTT-AT | Manufacturer: NTT-AT
  • Part Number: NTT AT 8500-10-0011MZ

SPECIAL NOTES: Between AFL Cletop Original Type A & AFL Cletop Original Type B

AFL Cletop Original Type A is designed for cleaning 1.25mm and 2.5mm ferrules using two slots, while Type B has a single open rectangular access slot that accepts a wider range of connectors, including SC, FC, ST, LC, MU, MT, MPO/MTP (without guide pins), and MT-RJ (without guide pins). Both offer consistent, alcohol-free cleaning and are environmentally friendly by trapping dirt in the woven tape’s micro pockets.

Differences:

Type A:

  • Ferrules: Designed to accept both 1.25mm and 2.5mm ferrules, including those found on SC, FC, ST, MU, LC, and D4 connectors.
  • Access: Features two separate, dedicated slots for ferrule cleaning.

Type B:

  • Ferrules: Designed to clean a broader range of connector types, including SC, SC2, FC, ST, DIN, D4, MU, LC, MT, MPO/MTP (without guide pins), and MT-RJ (without guide pins).
  • Access: Provides a single, open rectangular access point for the cleaning tape, which is more versatile than the Type A’s slots.

Similarities:

  • Cleaning Mechanism: Both use a specially formulated 2-µm fiber weave dry cloth that uses capillary action to lift and trap dirt from fiber ends in micro pockets.
  • Environmentally Friendly: Neither product requires the use of toxic or flammable chemicals, making them safe for use in the field and manufacturing settings.
  • Cost-Effective: The replaceable tape reels provide over 400 cleanings each, offering a cost-effective solution for fiber optic maintenance.
  • Consistency: Both provide consistent, high-quality cleaning results.
