Description

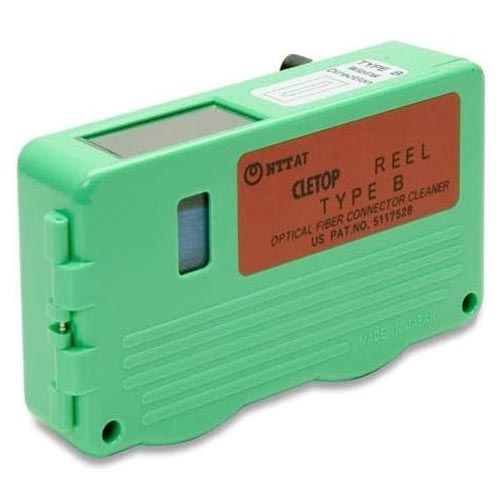

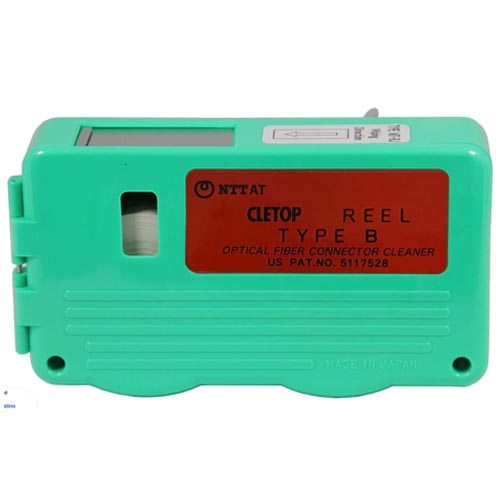

- Discover the fast, easy, economical way to clean ferrules. Use this type B classic CLETOP cassette to clean MU, LC, MT, MPO, MT-RJ without pins and Biconic connectors.
- Coarse-weave tape is designed for 2.5-mm ferrules. CLETOP, the industry standard for cleaning fiber connectors, is specified in many large OEM’s cleaning procedures.
- CLETOP’s specially formulated 2-µm fiber weave dry cloth lifts all dirt through capillary action, trapping it in its micro pockets. This saves time and money.
- Environmentally friendly CLETOP is the choice for field and manufacturing facility use.
- It’s completely safe and clean. No toxic and flammable chemicals are required. Anyone can achieve consistent high-quality results without alcohol, freon gas or other solvents.
- CLETOP’s woven cloth also is very effective in removing oil, grease and dust from ferrule surfaces.

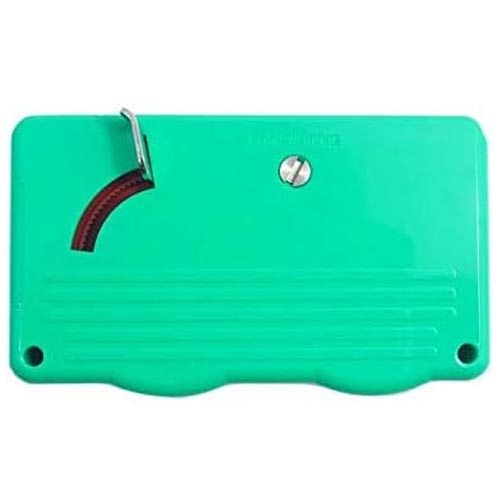

- Push down lever to expose two slots under plastic insert over tape. Each connector can be wiped twice – once down each slot to be double sure it’s clean. Cleaning tape can be used for over 400 connectors.
Technical Information:
- Brand: NTT-AT | Manufacturer: NTT-AT
- Part Number: NTT AT 8500-10-0014MZ
- Package dimensions: 14.71 x 11 x 10.69 cm; 231 g
SPECIAL NOTES: Between AFL Cletop Original Type A & AFL Cletop Original Type B
AFL Cletop Original Type A is designed for cleaning 1.25mm and 2.5mm ferrules using two slots, while Type B has a single open rectangular access slot that accepts a wider range of connectors, including SC, FC, ST, LC, MU, MT, MPO/MTP (without guide pins), and MT-RJ (without guide pins). Both offer consistent, alcohol-free cleaning and are environmentally friendly by trapping dirt in the woven tape’s micro pockets.
Differences:
Type A:
- Ferrules: Designed to accept both 1.25mm and 2.5mm ferrules, including those found on SC, FC, ST, MU, LC, and D4 connectors.
- Access: Features two separate, dedicated slots for ferrule cleaning.
Type B:
- Ferrules: Designed to clean a broader range of connector types, including SC, SC2, FC, ST, DIN, D4, MU, LC, MT, MPO/MTP (without guide pins), and MT-RJ (without guide pins).
- Access: Provides a single, open rectangular access point for the cleaning tape, which is more versatile than the Type A’s slots.
Similarities:
- Cleaning Mechanism: Both use a specially formulated 2-µm fiber weave dry cloth that uses capillary action to lift and trap dirt from fiber ends in micro pockets.
- Environmentally Friendly: Neither product requires the use of toxic or flammable chemicals, making them safe for use in the field and manufacturing settings.
- Cost-Effective: The replaceable tape reels provide over 400 cleanings each, offering a cost-effective solution for fiber optic maintenance.
- Consistency: Both provide consistent, high-quality cleaning results.
