Description

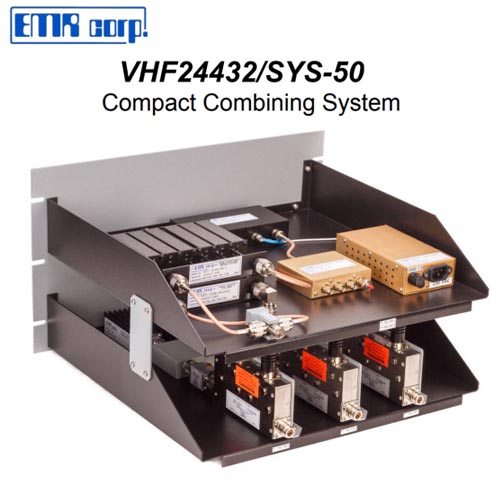

- EMR SYS Series Compact Combiners are single antenna systems including a transmitter combiner, receiver multicoupler and antenna duplexer.
- Using hybrid-ferrite technology a wide variety of difficult to combine frequencies can be shared on a common antenna.
- These systems are available in 25W, 50W and 100W versions delivered ready for operation with no on-site tuning or adjustment required.
Technical information:
- Brand: EMR | Manufacturer: EMR
- Model: VHF24432/SYS-50
- Weight: 35 lbs
- Frequency Band: 150-174 MHz
- Number of Channels: 3
- Power Per Channel (Max.): 50 W

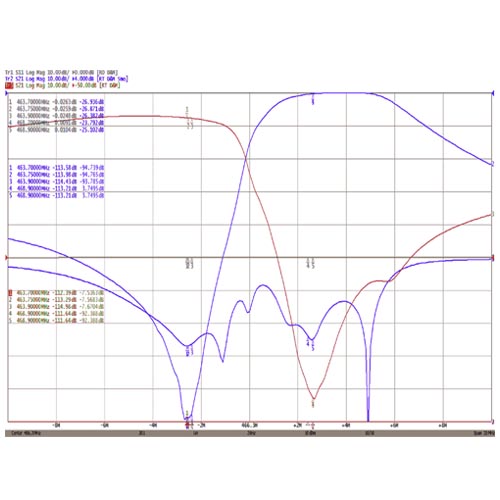

- Insertion Loss Tx (Typ.): 7.5 dB
- Passband Tx/Rx: 1 MHz
- Return Loss I/O (Max.): 20 / 18 dB
- Stopband Tx-Rx: > 4 MHz
- Isolation Ant-Tx (Min. / Typ.): 60 / 70 dB
- Isolation Tx-Tx (Min. / Typ.): 80 / 90 dB
- Isolation Tx-Rx (Min. / Typ.): 70 / 80 dB
- Isolation Rx-Tx (Min. / Typ.): 70 / 80 dB
- Rx Multicoupler Amp: Bipolar
- Amplifier Gain (Max.): 38 dB @ 160 MHz
- Amplifier Gain Adjust: Variable
- Amplifier Current Draw: 200 mA
- Amplifier Bias Voltage: 13.6 VDC
- Amplifier Noise Figure: 2.8 dB
- System Voltage: 100-240 VAC (Optional 12 / 24 / 48 VDC)
- System NF (Typ.): 5.0 dB
- Tx Bandpass Filter: Optional
- Impedance (Nom.): 50 Ω
- RF Connectors: BNC Female (Rx), N Female (Ant.), N Female (TX)
- Finish: Gray Panel
- Rack Mount: 19″ EIA
- Rack Units: 5 RU
- Operating Temp. Range: -22 to 140 °F (-30 to +60 °C)
- Operating Humidity Range: 90% Non-condensing
