Description
AN EFFICIENT, RELIABLE AND AFFORDABLE PRINTER YOU CAN RELY ON.

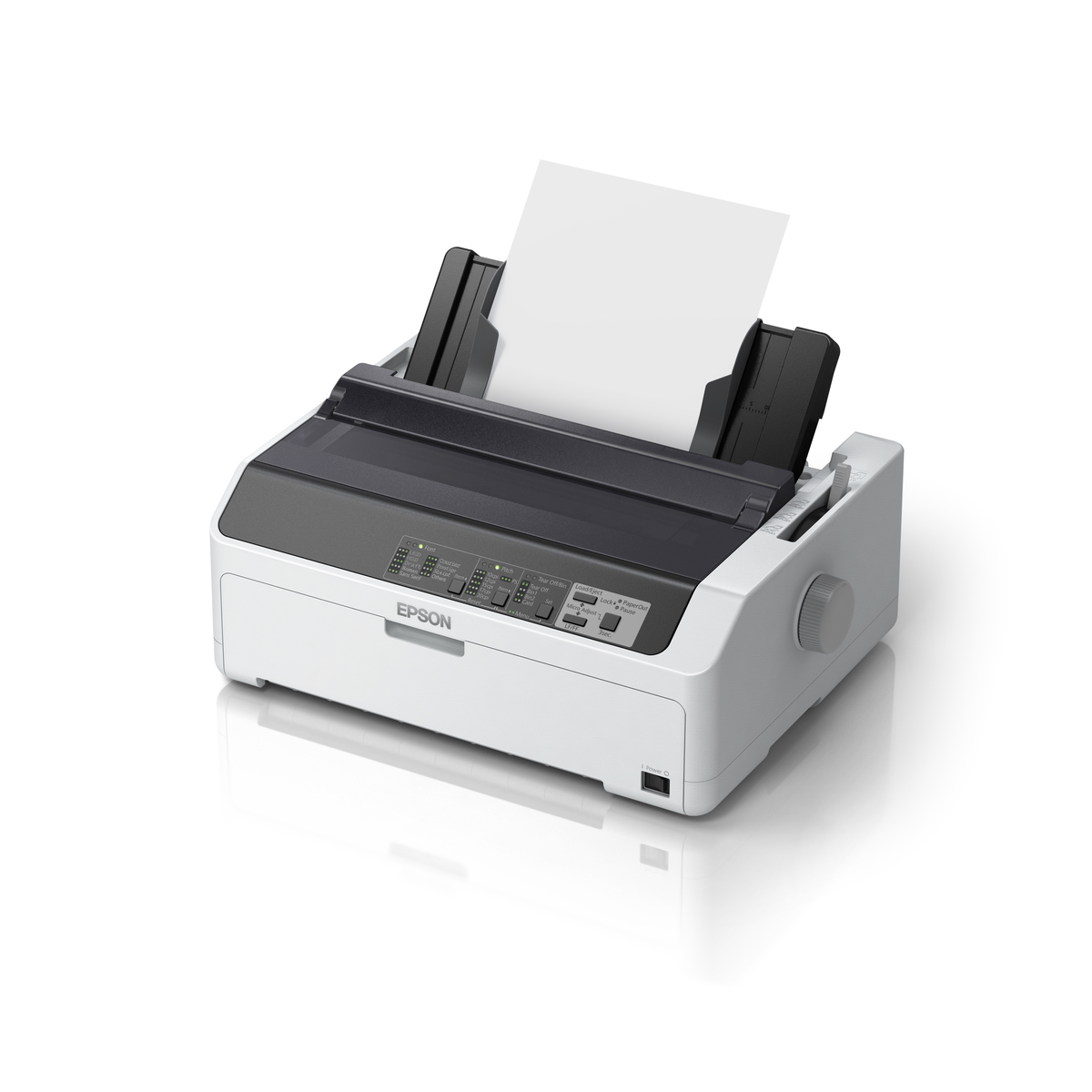

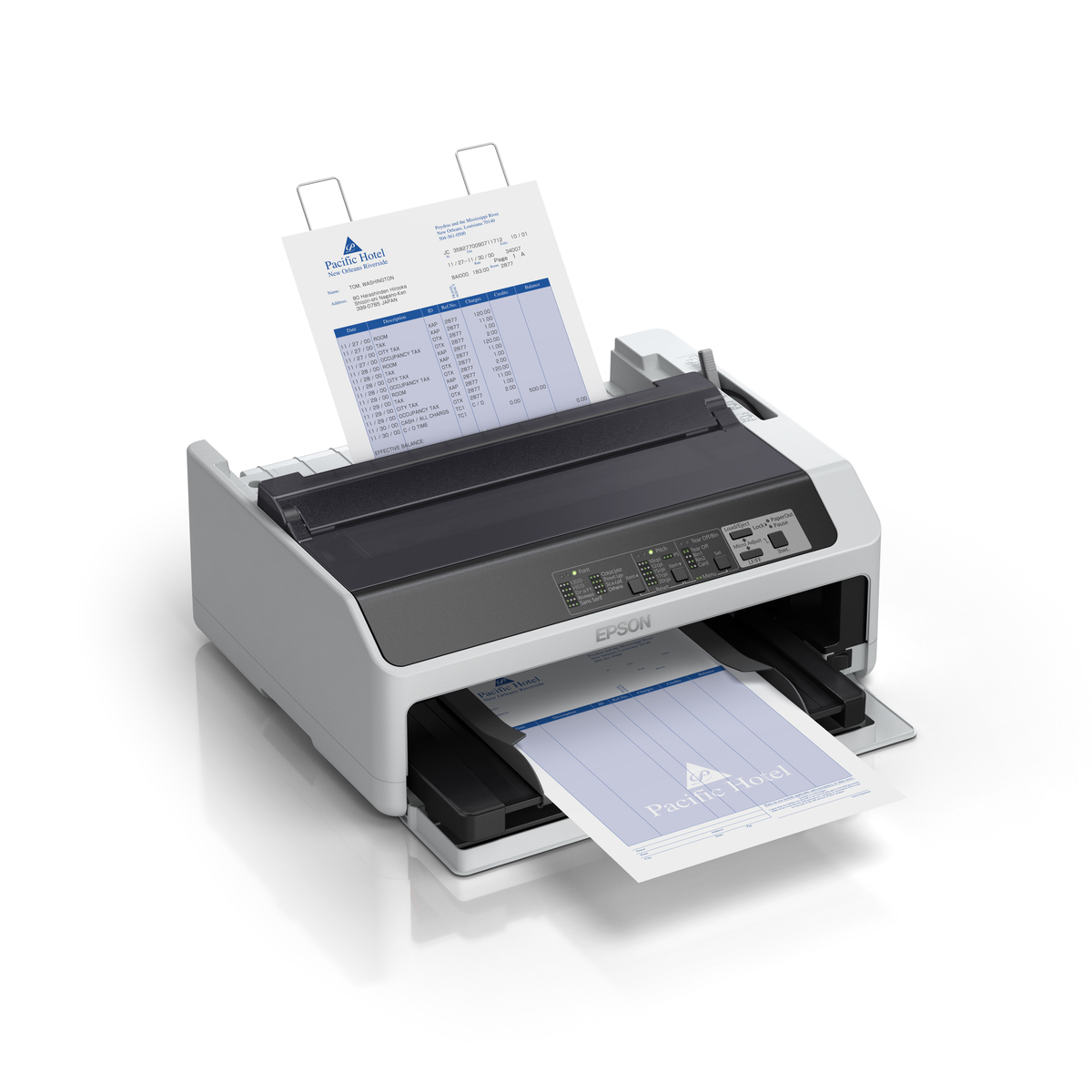

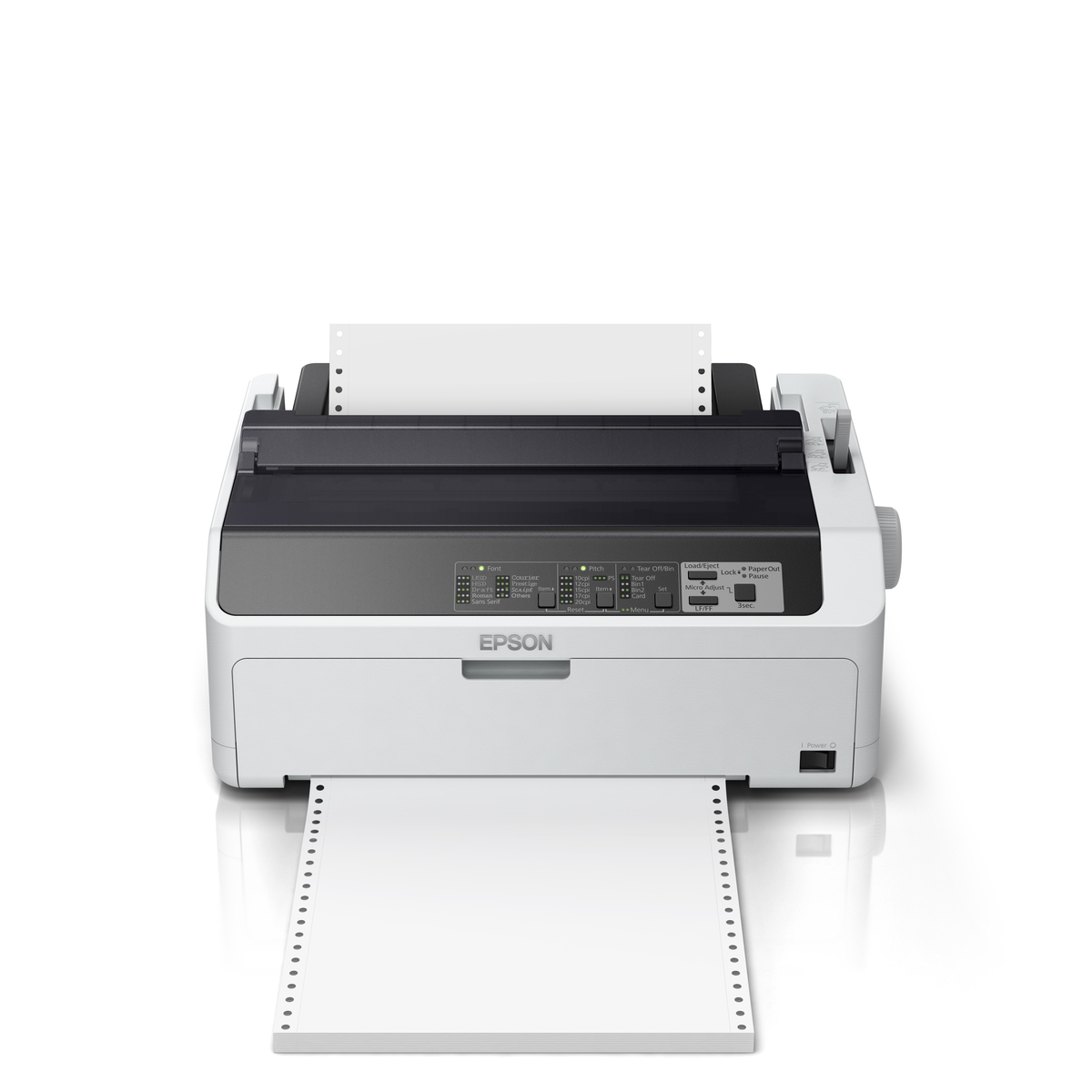

The Epson LQ-590II is designed to offer busy offices extraordinary speed, output quality and reliability. Based on Epson’s experience in delivering industry-standard solutions, this printer helps you run and grow your business and stay in control of your operations. Easily manage and print seven-part forms and reports at print speeds of up to 487 characters per seconds (cps) to deliver fast results and speedy transactions. Moreover, with a high character yield of up to 5 million characters, you can do more with less. * For continuous paper only.
- Improved Efficiency, Proven Reliability – 24-pins Impact Printer | Print speeds of up to 487 cps (10 cpi) | 128 kb memory buffer | MTBF of 25,000 POH
- Increased Productivity – Enjoy maximum productivity with fast print speeds of up to 487 cps (10 cpi) and 128 kb memory buffer.
- Long-life Reliability – Enjoy cost savings, superior print quality and minimal downtime with a MTBF of 25,000 POH.
- Print Method: Impact dot matrix | Control Panel: 6 switches and 10 LEDs | Print Direction: Bi-direction | Control Code: ESC/P2, IBM PPDS | Number of Pins: 24
- Print Speed: Ultra High Speed Draft: 10 cpi: 550cps | High Speed Draft: 10 / 12 cpi: 487 / 584 cps | Draft: 10 / 12 cpi: 366 / 439 cps | NLQ: 10 / 12 cpi: 121 / 145 cps
- Reliability: Printhead Life: 400 million strokes / wire | Mean Print Volume Between Failure (MVBF): 50 million lines (except print head) | Mean Time Between Failure (MTBF): 25,000 Power On Hours (POH) (25% Duty)
Print Characteristics:
- Character Sets: 1 Italic and 12 graphical character tables: Italic table, PC437 (US, StandardEurope), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC865 (Nordic), PC863 (Canadian-French), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15, Bitmap Fonts: 10, 12, 15 cpi, Scalable Fonts: Epson Roman / Sans Serif / Roman T / Sans Serif H: 10.5pt., 8pt – 32pt. (every 2pt.), Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A , UPC-E, Code 39, Code 128, POSTNET
Paper Path:
- Manual Insertion: Front or Rear in-Top out, Push Tractor: Front or rear in, top out, Pull Tractor: Front, rear or bottom in, top out
Paper Media:
Cut Sheet (Single Sheet):
- Entry: Front – Length: 100 – 364 mm (3.9 – 14.3”) | Width: 100 – 257 mm (3.9 – 10.1”) | Thickness: 0.065 – 0.14 mm (0.0025 – 0.0055”)
Entry: Rear – Length: 100 – 364 mm (3.9 – 14.3”) | Width:100 – 257 mm (3.9 – 10.1”) | Thickness: 0.065 – 0.14 mm (0.0025 – 0.0055”)
Cut Sheet (Multi-part Forms):
- Entry: Front – Length: 100 – 364 mm (3.9 – 14.3”) | Width: 100 – 257 mm (3.9 – 10.1”) | Thickness: 0.12 – 0.46 mm (0.0047 – 0.018”) | Copies: 1 Original + 5 copies
Continuous Paper (Single Sheet / Multi-part):
- Entry: Front, Rear, Bottom – Length: 101.6 – 558.8 mm (4.0 – 22.0”) | Width: 101.6 – 254 mm (4.0 – 10.0”) | Thickness: 0.065 – 0.49 mm (0.0025 – 0.019”) | Copies: Original + 6 copies
Envelope (No.6):
- Entry: Rear – Length: 92mm (3.6”) | Width: 165mm (6.5”) | Thickness: 0.16 – 0.52 mm (0.0063 – 0.0205”)
Envelope (No.10):
- Entry: Rear – Length: 105mm (4.1”) | Width: 241mm (9.5”) | Thickness: 0.16 – 0.52 mm (0.0063 – 0.0205”)
Label (Base Sheet):
- Entry: Bottom – Length: 101.6 – 558.8 mm (4.0 – 22.0”) | Width: 100 – 148 mm (3.9 – 5.8”) | Thickness: 0.16 – 0.19 mm (0.0063 – 0.0075”)
Card:
- Entry: Front, Rear – Length: 100 – 148 mm (3.9 – 5.8”) | Width: 100 – 148 mm (3.9 – 5.8”) | Thickness: 0.22mm (0.0087”)
Roll Paper:
- Entry: Rear – Diameter: 127mm (5”) | Width: 216mm (8.5”) | Thickness: 0.07 – 0.09 mm (0.0028 – 0.035”)
Line Spacing:
- 4.23mm (1/6”) or programmable in increments of 0.0706mm (1/360”)
Options:
- Single Bin Cut Sheet Feeder C12C806372
- Pull Tractor Unit C12C933761
- Ribbon Cartridge C13S015589
- High Capacity Cut Sheet Feeder C12C806382
Additional Information:
- Input Data Buffer: 128KB
- Ribbon Cartridge: Standard: Fabric Ribbon Cartridge (Black), Ribbon Life: Approx. 5 million Characters
- Environmental Conditions (Operating): Temperature: 5 – 35 °C | Humidty: 10 – 80% RH
- Interface: USB 2.0, Bi-directional parallel USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported) or with additional 100base-Tx wired Lan
- Supported Operating System: Printer Driver: Microsoft Windows XP / Vista / 7 / 8 / 10 | Utility: Epson Status Monitor 3: Microsoft Windows XP / Vista / 7 / 8 / 10
Epson Setting Utility: Microsoft Windows XP / Vista / 7 / 8 / 10 - Acoustic Noise: 55dB
- Printable Columns/ Pitch: 10cpi: 80 columns
- What’s in the box: Main Unit – Impact Printer | CD-ROM | Set-up Manual | AC Power Cable | Ribbon Cartridge | Guide Stacker | Wing | Tractor
