Description
- MPO test, inspection & cleaning applications.
- Optical power at 9 calibrated λ, -60 to +5 dB range.
- Optical loss on MM fiber at 850 & 1300 nm, 40 dB range (@ 62.5um), EF compliant.
- This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
- Reporting software for cable loss (manual data entry).
- Optical continuity / tone checking,12 fiber Multi-Fiber ID, 22 dB range.
- Optical connector end-face inspection microscope x200.
- Optical connector cleaning tools & materials.
- Generally meets safety regulations & standards based test procedures.
Connector & battery summary:
- SC, LC, MPO interchangeable connector adapters.
- Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
- Source accepts SC & LC. PC polish.
- Microscope accepts MPO PC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
- Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
- Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
- Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.
- A suitable MPO breakout cable is needed for this kit.

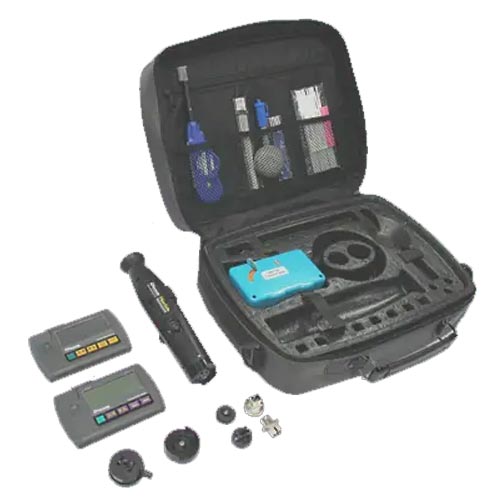

What is in the box:
- Fiber Optic LED Test Source KI9812A – Economical shirt-pocket size source | LED source for MM | POF testing | EF compliant c/w Mandrel Wrap Filters, 50 & 62.5 um OPT701 | Quality Assurance Certificate | Quick Reference Guide QRG | SC/SC Through Connector OPT046 | Wrist Strap / Lanyard

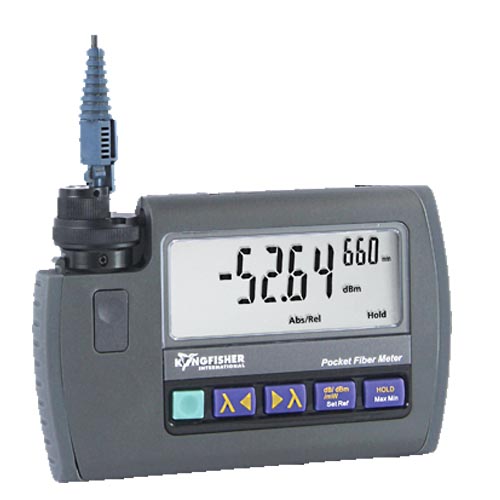

- OPM Meter MPO/POF KI 9600XL-Si5 – Simple shirt-pocket size power meter | Large area detector for ribbon fiber, MPO & POF testing | Ideal for transmission installers s/w Quality Assurance Certificate | Quick Reference Guide QRG | Traceable Calibration Certificate ILAC/NATA Compliant | Wrist Strap / Lanyard

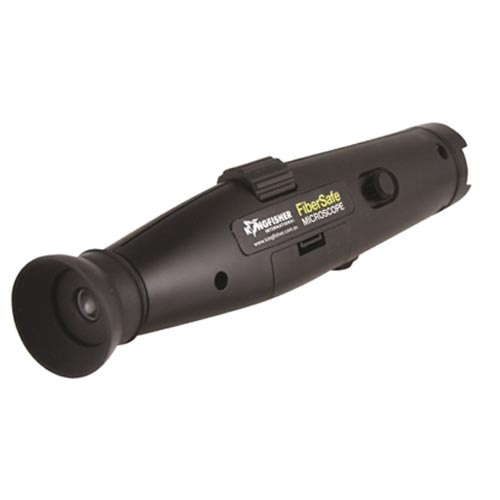

- FiberSafe Fiber Connector Scope KI6610 – 200x microscope for inspection of SM, MM & MPO networks | Best quality, image & eye safety | Wide range of interchangeable adaptors c/w 2.5 mm Universal Connector Adapter for KI6610 Series Microscope. OPT681 | Instrument User Manual | Quality Assurance Certificate | USB Cable (Micro or C) | Wrist Strap / Lanyard
Accessories Included:
- LC Hybrid Connector Adapter OPT076 – LC Simplex adaptor, metal body
- MPO Connector Adapter – XL Power Meter, OPT227 – MTP™ / MPO 12 x n style adaptor with central key. For both MM & SM fiber. For XL power meters with a 5 or 7 mm detector.
- 1.25 mm Universal Connector Adapter – XL Power Meter, OPT224 – 1.25 mm Universal adaptor. Also fits duplex LC.
- SC Connector Adapter – XL Power Meter, OPT201 – SC adaptor.
- MPO 12 24 Connector Adapter for KI6610 Series Microscope. OPT677 – MPO 12 x n style adaptor. Incorporates traversing knob.
- 1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682 – Universal 1.25 mm PC adaptor, Simplex / Duplex and terminus for ruggedised connectors.
- Semi-Rigid Carry Case for Test Kits OPT155 – Highly cushioned & convenient carry case, durable custom moulded urethane foam, splash resistant cloth cover with zipper and separator, carry strap. Fits microscope, cleaning materials, three KI9000 instruments.
About Carry Case OPT155:
- Semi-rigid case is both comfortable to use & avoids damaging other objects.
- Layout help avoid losing items on-site.
- Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains pack, 2 x mandrel wrap, instruments c/w Fiber Connector Cleaner Cartridge TOOL CLEAN-09A | Puffer Brush TOOL BRUSH-01 | Stick-type Cleaner 1.25 mm TOOL CLEAN-04 | Stick-Type Cleaner 2.5 mm TOOL CLEAN-03 | Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A | MPO/MTP Classic Reel Cleaner OPT401
