Louisville HD Twin Front Fiberglass Ladder FM1400

$1,480.00$2,100.00

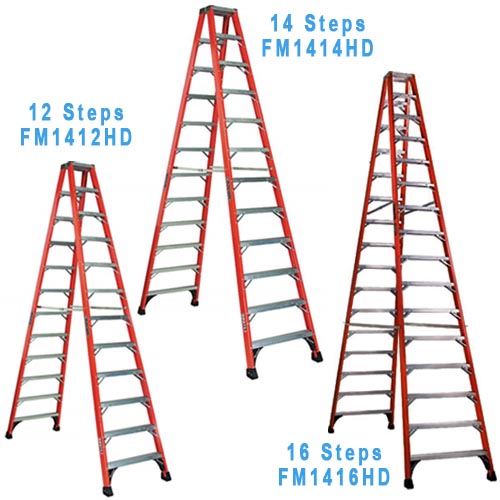

Louisville HD Twin Front Fiberglass Ladder FM1400 – 3 Options in number of steps – 12 steps (FM1412HD) | 14 steps (FM1414HD) | 16 Steps (FM1416HD)

Description

  • A non-conductive fiberglass industrial twin front ladder stamped with the BRUTE logo, this ladder has an extra-heavy duty ratigo capable of supporting up 375lbs.
  • Equipped with Da Boot for slip resistant footing, the SHOX and heavy steel hinges.
  • Material: Fiberglass
  • Duty Rating: IAA

Note: Ladder is for industrial use, minor scratches may be presented due to transportation

SKU FM1412HD FM1414HD FM1416HD
Duty Rating Type IAA Type IAA Type IAA
Load Capacity 170kg (375lbs) 170kg (375lbs) 170kg (375lbs)
Number of Steps (Include Top) 12 14 16
Effective Steps 11 13 15
Material Fiberglass Fiberglass Fiberglass
Weight 30.8kg (68lbs) 38kg (84lbs) 45kg (100lbs)
Open Height 290.3cm (114.301″) 319.3cm (125.714″) 348.3cm (137.127″)
Open Depth 207.0cm (81.512″) 225.9cm (88.928″) 244.7cm (96.344)
Open Width 75.8cm (29.875″) 83.5cm (32.875″) 91.1cm (35.875″)
Closed Height 339.6cm (133.7″) 400.6cm (157.7″) 461.5cm (181.7″)
Closed Depth 20.3cm (8″) 20.3cm (8″) 20.3cm (8″)
Closed Width 75.9cm (29.9″) 83.6cm (32.9″) 91.2cm (35.9″)
Top Width Closed 32.5cm (12.8125″) 32.5cm (12.8125″) 32.5cm (12.8125″)

Additional information

No. Of Steps

12 steps ( FH1412HD), 14 steps ( FM1414HD), 16 steps ( FM1416HD)
