Description

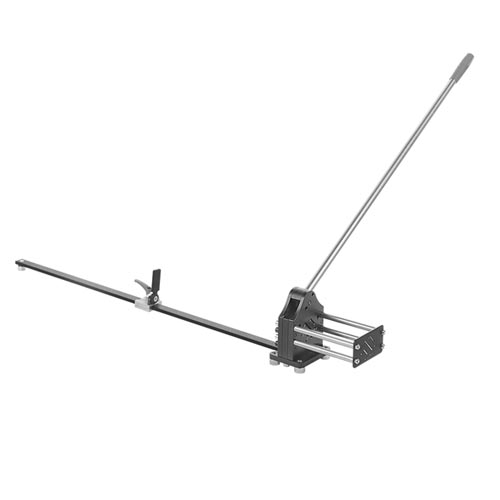

- A McMaster-Carr DIN 3 rail cutter (or similar) is a manual, bench-mounted tool for cleanly cutting various standard DIN rails (like 35mm) and sometimes busbars, featuring an integrated measuring scale with an adjustable stop for precise, repeatable, burr-free 90-degree cuts, saving time and improving finish for panel builders.
- Pull the lever on these cutters to make smooth cuts in steel and aluminum DIN rails without leaving a bur. To cut the same length over and over, slide the stop along the ruler and clamp in place. Cutters mount to your workbench.
Features:
- Clean Cuts: Produces smooth, burr-free ends, eliminating the need for filing and improving productivity.
- Versatility: Often cuts multiple common DIN rail profiles (e.g., 35×7.5mm, 35x15mm) and busbars with one die.
- Precision: Includes a ruler (metric/imperial) and an adjustable end stop for accurate length setting.
- Bench Mount: Designed to be secured to a workbench for stability, often using clamps or a vice.

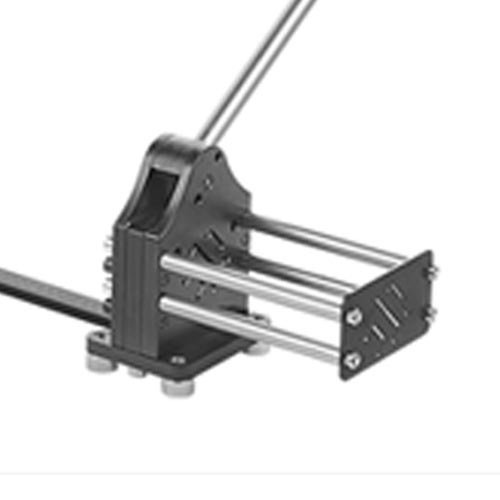

- Ease of Use: Simple lever action provides mechanical advantage for cutting, with a guide plate for support.
How it Works:
- Mount: Secure the cutter to a workbench.
- Set Length: Adjust the stop block to your desired measurement using the built-in scale.
- Insert Rail: Place the DIN rail into the cutter, pushing it against the stop.
- Cut: Pull the lever down firmly to make a clean, precise cut.
For Cutting Trade Size (Ht. × Dp. × Overall Dp.)

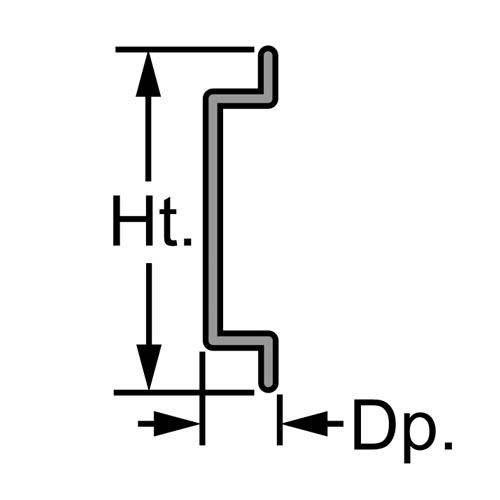

- DIN 3 Rails (35 × 7.5 mm)
- DIN 3 Rails (35 × 15 mm)

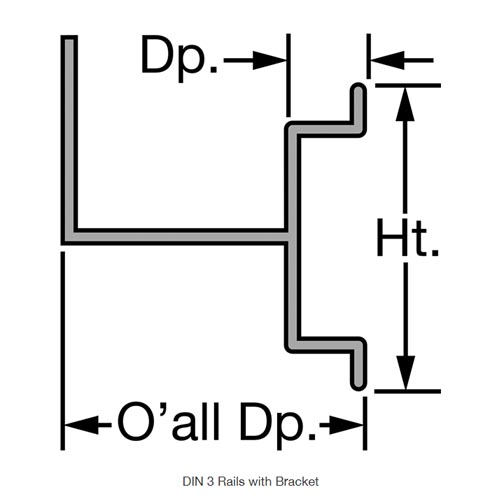

- DIN 3 Rails with Bracket (35 mm × 7.5 mm × 58 mm)
Technical Information:
- Part Number: 6134N12
- Height: 47″
- Width: 6″
- Length: 54″
- Handle Length: 40″
- Ruler Lg.: 39″/100 cm
- Diameter: 0.39″
- Ruler Graduations (Numeric Increments): 1/16″ (1″), 1 mm (1 cm)
- For Use On: Aluminum, Steel
- DFARS Compliance: Specialty Metals COTS-Exempt
- REACH Compliance: REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant
- RoHS Compliance: RoHS Compliance
- Schedule B Number: 820299.0000
