Description

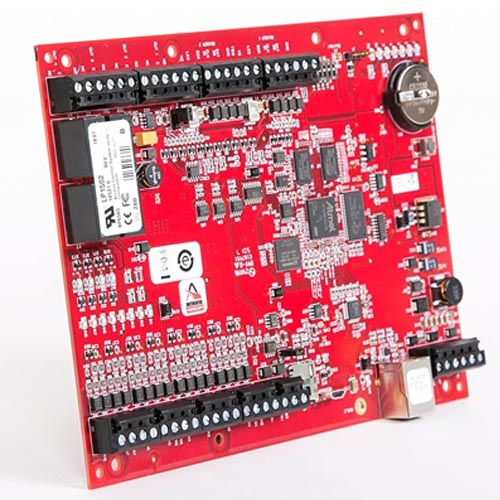

The multi-port LP1502 is a 2-4 card reader panel for controlling two connected doors and managing up to 64 doors/openings. Built on the proven Mercury platform, the intelligent controller uses an on-board Ethernet port to connect to cloud or server-based access control hosts. The LP1502 controller performs access control, alarm management and scheduled operations ― all in a single package.
- Versatile Reader Support: Supports up to four readers, allowing for flexible access control configurations tailored to various environments and user needs.
- Enhanced Input/Output: Equipped with eight inputs and four outputs, this controller provides comprehensive monitoring and control capabilities for effective security management.
- Intelligent Management: Features advanced processing for real-time decision making, ensuring quick responses to security breaches and improving overall safety.
- Open Architecture: High performance, reliable platform enables use of hardware with Mercury OEM partners’ software solutions.
- Enhanced Security: Embedded crypto memory chip and data at rest encryption provides secured layer of protection of sensitive data.
- OSDP Protocol: Secure channel communications for reader connectivity.
- Versatile Interoperability: Same reliable interface and identical footprint as the EP controllers, enabling seamless upgrades for existing deployments, 240,000 cardholder capacity.
Technical Information:
- Brand: Mercury Security | Manufacturer: Mercury Security
- Model: LP1502
- Capacity: 240,000 cardholders
- Transactions: 50,000 transaction buffer
- Communication: Ethernet (10-BaseT/100Base-TX) and USB port
- Door and reader specifications: Native support: 2 doors, 4 readers
- Expansion: Can be expanded to support up to 64 readers and openings
- Reader Types: Supports OSDP, OSDP Secure Channel, Wiegand and other technology
- Input/output specifications: Inputs: 8 supervised/unsupervised inputs | Outputs: 4 relays
- Relay specifications: Form C, 5 Amp @ 30 VDC (NO), 3 Amp @ 30 VDC (NC)
- Dedicated inputs: 2 dedicated inputs for cabinet tamper and UPS fault monitoring
- Dimensions: 203 x 152 x 25 mm
- Weight: 255 g
- Operating temperature: 0∼70 °C (32∼158°F)
- Operating humidity: 5 ~ 95%
- Power: 12 ~ 24 V DC
- Security features: Encryption: Embedded crypto memory chip, data at rest encryption
- Protocols: OSDP protocol for reader connectivity
- Authentication: IPv4/6, TLS1.2, 802.1X
- Certifications: FIPS 140-2 user of OpenSSL
- Package Dimensions: 9.76 x 6.93 x 2.91 inches (24.8 x 17.6 x 7.4 cm)
- Item Weight: 11.3 ounces (320.36 grams)
