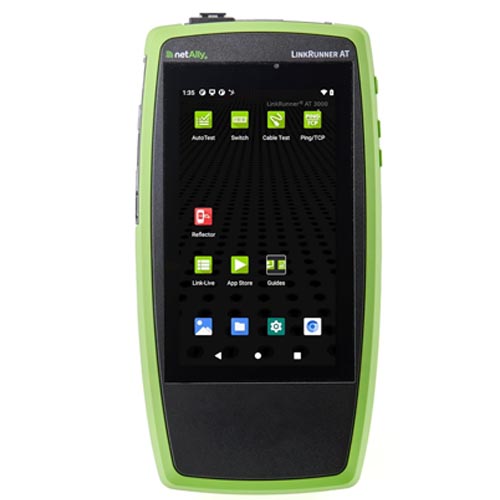

NetAlly LinkRunner AT 3000 Network Connectivity Test Kit

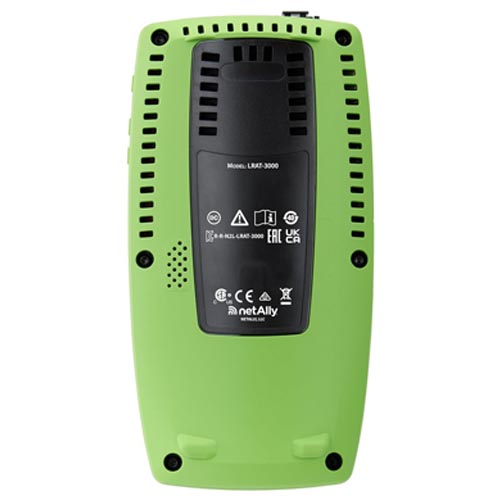

NetAlly LinkRunner AT 3000 Network Connectivity Test Kit - Image 2

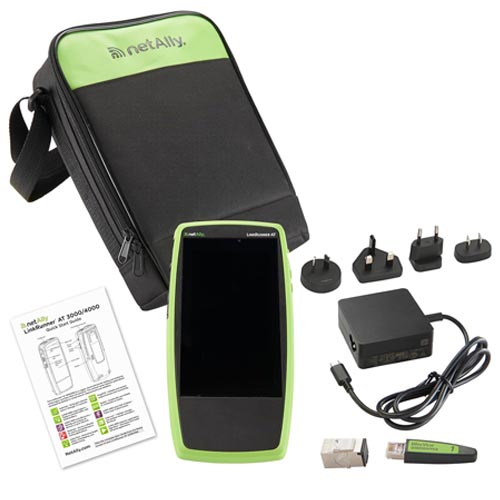

NetAlly LinkRunner AT 3000 Network Connectivity Test Kit - Image 3

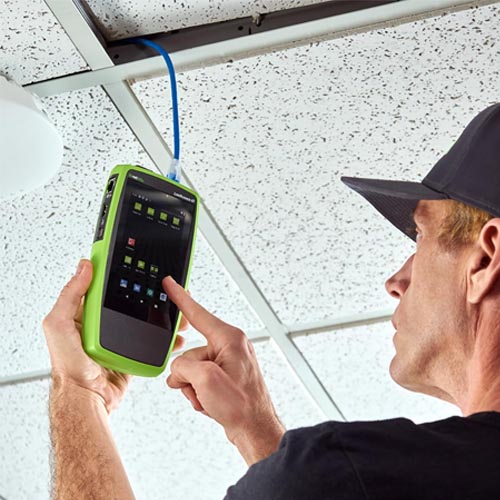

NetAlly LinkRunner AT 3000 Network Connectivity Test Kit - Image 4

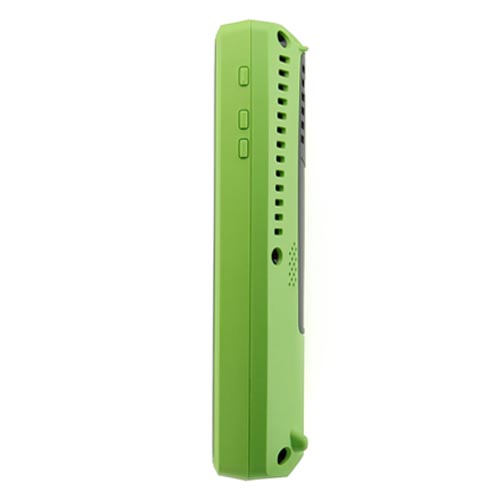

NetAlly LinkRunner AT 3000 Network Connectivity Test Kit - Image 5

NetAlly LinkRunner AT 3000 Network Connectivity Test Kit

$5,620.00

The LinkRunner AT 3000 is designed for frontline technicians who need fast and comprehensive validation of copper and fiber network links with powerful network connectivity troubleshooting.

  • Large touchscreen and in-depth AutoTest that provides deeper network visibility.
  • Designed to help with network changes and troubleshooting, this network tester’s quick cable test and switch identification functionality facilitates installation validation and fast problem isolation.
  • Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management.
  • Independent management plane via wired or Wi-Fi connection (with optional adapter) allows remote operation and result uploading independent of the network under test.
SKU: FONECTKLRAT3000K Categories: , , ,

Description

  • Comprehensive AutoTest validates and troubleshoots all aspects of network link connectivity and services including DHCP and DNS.
  • Verifies link speed/duplex for 10/100 Mbps and 1 Gbps, with detection of NBASE-T and Multigigabit 2.5G, 5G, and 10 Gbps links.
  • Discovers nearest connected switch name and port information via CDP/LLDP/EDP, including VLANs; monitors VLAN trunk traffic; Validates Power over Ethernet PoE switching and cabling up to 90W 802.3bt with TruePower loading.
  • Advanced twisted-pair cable tests for length, wiremap, and faults such as shorts, opens, mis-wires (split pairs, crossovers), fiber optic link signal strength power measurement and SFP diagnostics. Locate cable endpoints with optional WireView adapters and analog or digital tone generator.
  • Use optional USB Wi-Fi/Bluetooth adapter for connectivity and remote control*; Automate reporting and enable collaboration with test result uploads, management, and tester remote control via Link-Live analysis platform; *Active AllyCare Premium Support required for web remote control.

Technical Information:

  • Brand: NETALLY | Manufacturer ‏ : ‎ NetAlly
  • Item model number ‏ : ‎ LRAT-3000-KIT
  • Power source: Battery Powered | 1 Lithium-Ion batteries required. (included)
  • Application: Copper and Fiber Ethernet Cable and Network Tester
  • Colour: Green/Black | Item weight: 1.06 Lbs
  • Item dimensions L x W x H: 19.6 x 10.2 x 4.2 cm
  • Lower temperature rating: 32 Degrees Fahrenheit
  • Min. Operating voltage: 15 Volts (DC)
  • Specification met: CE, IEC 61326, UKCA, IEC 61010-1:2000-1, RoHS
  • Upper temperature rating: 113 Degrees Fahrenheit
