Name: Rackmount.IT RM-CI-T14MC Rack Mount Kit
SKU: FONRMRMCIT4MC
Availability: InStock

Description

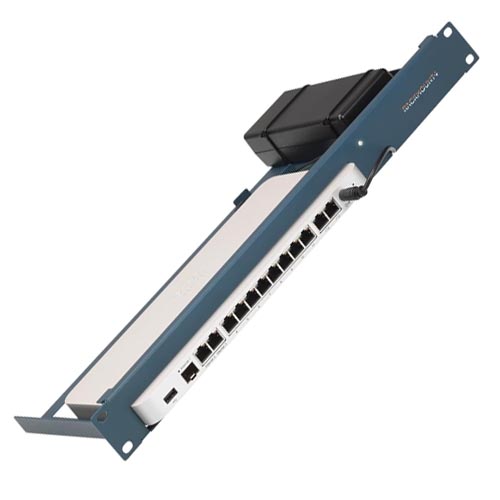

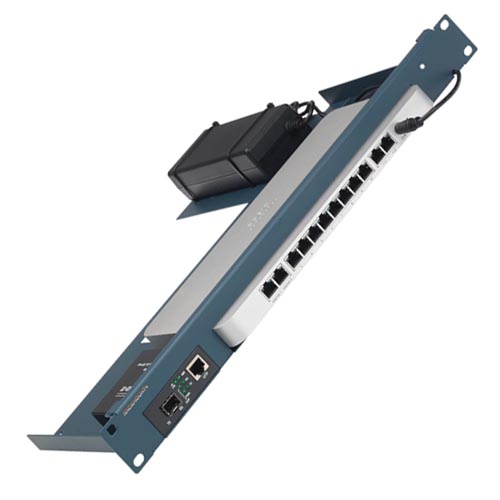

The Rackmount.IT RM-CI-T14 is a 1U custom rack mount kit built specifically for Cisco Meraki MX68, MX68W, MX68CW, and MX75 appliances.
Designed to maximize space efficiency and visual clarity, it relocates all networking and power connections to the front of the rack, making setup and ongoing maintenance easier and neater.
The mounting process is tailored by model. For the MX68 series, users retain and reuse the original bolts to secure the device.
For the MX75, two dedicated bolts are included in the package. After removing the rubber feet and two bottom-front bolts, the appliance is inserted rear-first through the rack’s opening and pinned down using a table edge for alignment.

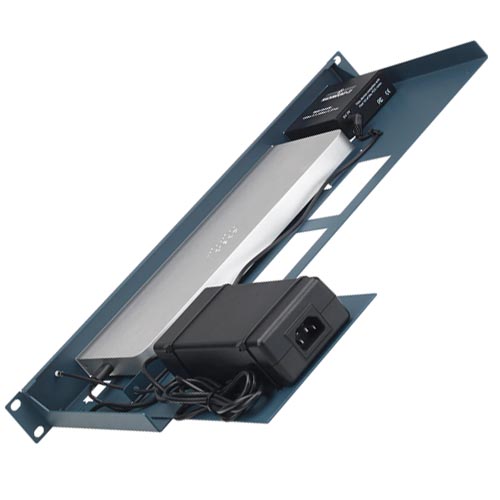

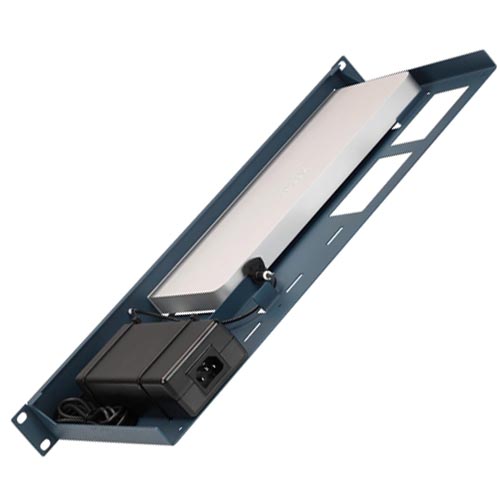

The integrated tray also includes mounting points for the power supply and cutouts for clean cable routing to the front of the rack.
A dedicated light pipe allows users to monitor device activity from the outside of the rack. Manufactured from high-grade steel and finished in Cisco Metallic Blue, the RM-CI-T14 combines enterprise-grade resilience with a design that aesthetically aligns with Meraki appliances.
The complete package includes the rack tray, light pipe, three zip ties, two bolts (for MX75), and a Torx T8 key for precision setup.

Features:

Precision-designed for Cisco Meraki MX68, MX68W, MX68CW, and MX75 models, allowing for secure and exact 1U rackmount installation.

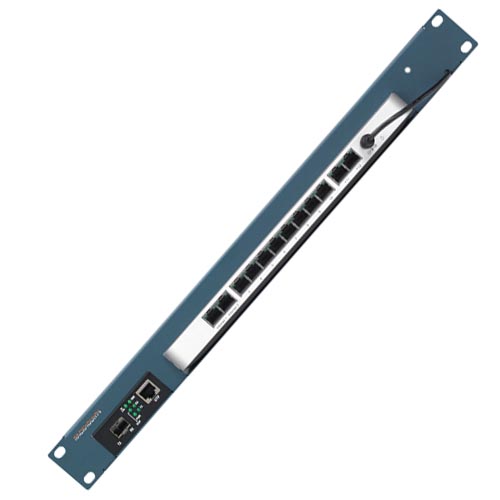

Brings all ports and power connections to the front panel, enabling better cable organization and full accessibility.
Power supply is securely mounted on the tray, with included zip ties and cable cutouts ensuring clean front-routing.
Includes separate mounting hardware for MX68 (uses original bolts) and MX75 (uses included bolts), plus Torx T8 key and light pipe.
Constructed from solid steel with a Cisco Metallic Blue finish, delivering both durability and a cohesive look in Cisco environments.

Technical Information:

Rackmount.IT RM-CI-T14MC Rack Mount Kit
