Description

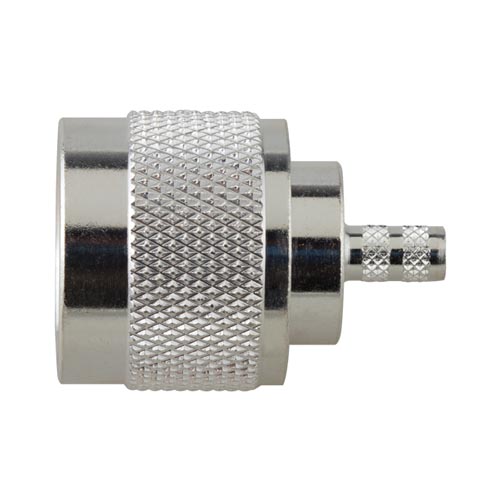

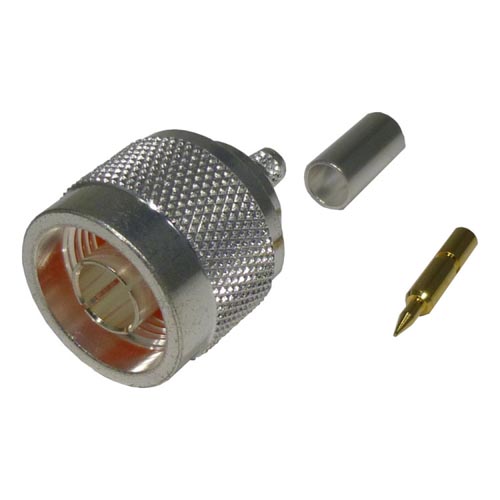

- The RF Industries RFN-1005-3C1 is a 50-ohm, straight Type-N male cable crimp connector designed for high-frequency applications up to 11 GHz.
- It features a silver-plated brass body, gold-plated brass contact, and PTFE dielectric, suitable for RG-142, RG-223, and RG-400 cables (Cable Group C1).
- This connector is typically used in wireless/wireline telecom and data communications, featuring a threaded coupling mechanism
Key Specifications:
- Manufacturer: RF Industries
- Part Number: RFN-1005-3C1
- Connector Type: Type-N Male (Plug)
- Impedance: 50 Ohms
- Frequency Range: Up to 11 GHz
- Body Style: Straight
- Attachment Method: Crimp (Body), Solder (Contact)
- Cable Compatibility: RG-142, RG-223, RG-400, RG-55, Belden 83242
- Body Plating: Silver
- Contact Plating: Gold
- Dielectric Material: PTFE (Teflon)
- Temperature Rating: -65°C to +165°C
- VSWR: 1.3:1
.
