SEW 1107 IM Audio Impedance Tester

$497.00

SEW 1107 IM – Audio Impedance Tester (0〜20kΩ)

  • Large LCD : 68 × 34mm(2.677″ × 1.338″).
  • True measurement of speaker systems actural impedance at 1kHz.
  • Three test ranges allow testing of home theater and commercial sound systems.
  • Measures transformer impedances.
  • Battery operation.
  • Low battery indication.
  • Data hold function.
  • 0Ω adjustment.

SEW 1107 IM Datasheet

HS Code: 90189042

Country Of Origin: Taiwan

SKU: ENEAIMPSEW1107IM Categories: , , ,

Description

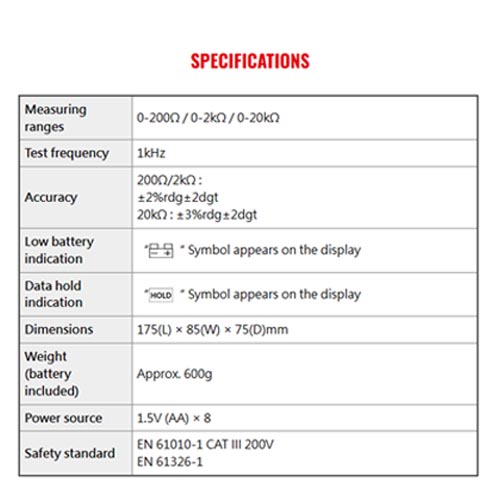

Technical Information:

  • Brand: SEW | Manufacturer: Standard Electric Works
  • Model: 1107 IM
  • Measuring ranges: 0-200Ω / 0-2kΩ / 0-20kΩ
  • Test frequency: 1kHz
  • Accuracy: 200Ω/2kΩ (±2%rdg±2dgt) | 20kΩ ( ±3%rdg±2dgt)
  • Low battery indication: Yes
  • Data hold indication: Yes
  • Dimensions: 175(L) × 85(W) × 75(D)mm | 600 g
  • Power source: 1.5V (AA) × 8
  • Safety Standard: EN 61010-1 | CAT III 200V | EN 61326-1
