Description

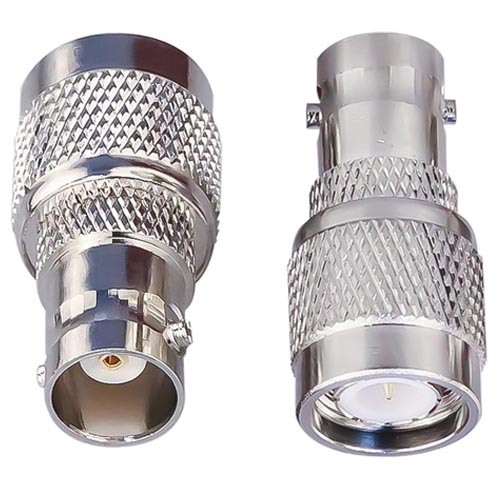

- Type & Details: TNC Male to BNC Female connector; Color: gold and silver; Material: pure copper & nickel plated; Impedance: 50 ohm, low-loss
- Durability& Performance: The connector is made of pure copper & nickel plated to ensure it’s durability and recycling usage. High quality adapter ensure low loss in signal transmission and good conductivity.
- Application: Widely used for FPV Antennas, Coaxial cable, CCTV, Wifi Radios, Radio transceivers, LMA, Video, Telecom, Wireless & Wired device, Antennas, Broadcast and so on.
Technical Information:
- Brand: TUOLNK | manufacturer: TUOLNK
- Colour: Silver
- Connector type: Coaxial
- Compatible devices: Amplifier
- Connector gender: Male-to-Female
- Connector 1: TNC Male
- Connector 2: BNC Female
- Connector material: Nickel plated
- Conductor material: Pure copper
- Impedance: 50 ohm, Low-loss
- Temp range: -65 ～+165℃ (PE Cable -40 ～+85℃)
- Mounting Type: Free hanging
- Working Voltage: 335V max
- Frequency Range: DC～6GHz
- Insulation resistance≥ 5000 MΩ Insertion loss≤0.15 dB/6GHz
- Center Contact : ≤ 3 mΩ, Outer Contact : ≤2mΩ
- Durability (mating) ≥500 (cycles)

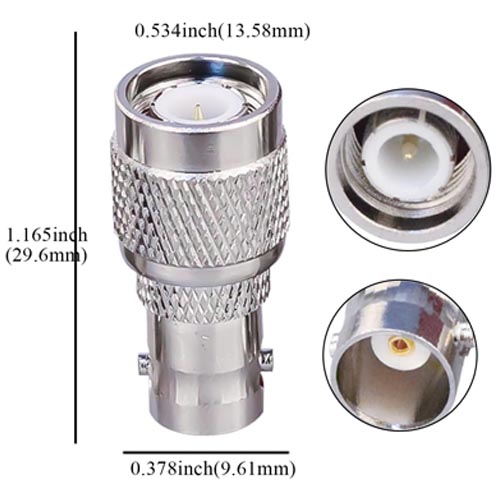

- Package dimensions : 5.6 x 3.8 x 1.8 cm; 20 g

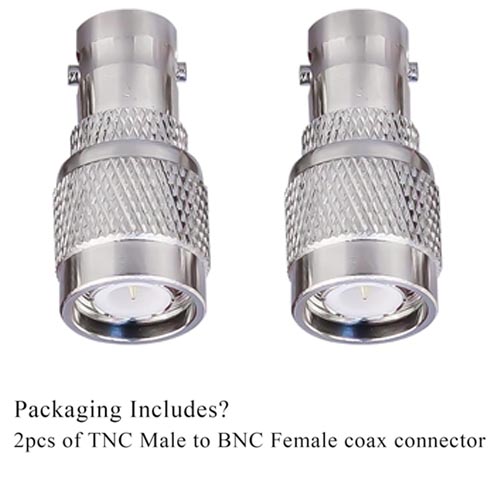

- Packaging Includes:
- 2pcs of TNC Male to BNC Female coax adapter
- Connector 1: TNC Male
- Connector 2: BNC Female
Attention:
- Pls make sure which type of connector you need, in case of your inconvenient by buying the wrong product which is not suitable for your adapter.
