Description
Technical Information:

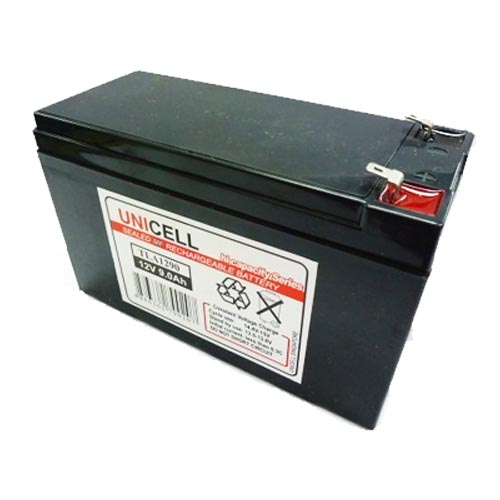

- Categories: 12V 9.0Ah Sealed Lead Acid (SLA) maintenance free battery,
- Description: 12V rechargeable battery
- Size: Length 151 x Width 65 x Height 94mm / 100 (with terminal) + 2 mm
- Weight: 2.45 Kg | Terminal: F2 ( 6.35mm or 0.25 inch )
- Application: UPS, Exit light , back-up system
- Cells Per Unit: 6 | Voltage Per Unit: 12 V
- Capacity: 9.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
- Weight (kg): Approx. 2.8kg
- Maximum Discharge current (A): 90A (5sec.)
- Internal Resistance Approx.: Approx. 18mΩ
- Operating Temperature Range: Discharge：-15℃~50℃(5°F~122°F) | Charge：-15℃~40℃(5°F~104°F) | Storage：-15℃~40℃(5°F~104°F)
- Nominal Operating Temperature Range: 25°C ± 3°C (77°F ± 5°F)
- Float charging voltage: 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
- Recommended Maximum Charging current limit: 2.7A
- Equalization and Cycle Service: 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
- Self Discharge: Unicell batteries can be stored for more than 6 months at 25°C (77°F)
- Note: Please charge batteries before using. For higher temperatures the time interval will be shorter.
Fit or replace battery part no. (Cross refer or compatible chart )
- APC RBC2 UPS battery equivalent | B.B. battery HR9-12 | CSB HR1234WF2 battery | CSB HR1234W F2 battery | CSB 12460 F2 battery
- CSB 12V 460W/PCS/9.6V/5MIN battery | Enersys datasafe npx-35tfr battery | Exide EP1234W battery | Fiamm FGH20902 battery
- Firstpower FP1285 battery | Firspower FP1290 battery | GS Storage PE12V9F2 battery | GS Portalac PXL 12090 battery | GS Portalac PXL12090 battery
- Hitachi HV7-12 battery (12V 7Ah) | Huanyu HYS1280 battery (12V 8Ah) | Long WP9-12 battery | Nollon NP1290 battery | Panasonic LC-R129P1 battery
- Panasonic LC-R129CH1 battery | Panasonic UP-RW1245ST1 battery | Panasonic UP-VW1245P1 battery | Panasonic UP-VW1245NA1 battery
- Powersonic PS-1290 F2 battery | Power-sonic PS-1290 battery | Powersonic PG 12V9 F2 battery | Powersource WP9-12 T2 FR battery
- Prolink PRO700SFC battery | Prominent Magnitude VB 9-12 battery | Ritar RT1290 battery | Shimadzu Medical Systems 511-18026-02 battery
- Shimadzu Mobileart MUX-100H battery | Sunez UTY 12V-9Ah battery | Sunrise Power SP1290 battery | Universal UB1290 F2 battery | Vision CP1290 battery
- Werker WKA12-8F battery (F1 terminal) | Yuasa NP9-12 battery | Yuasa REW45-12 battery | Yuasa SM280 battery ( F2 terminal )
Fit or replace product model: (Cross refer or compatible chart )
- Cyberpower UPS CPS700AVR AVR battery | Cyberpower UPS CPS825AVR AVR battery | Ablerex 1500L 1500va 900W UPS battery ( need 2 battery )
- Amigo Classic 800000 battery | Amigo Travel Mate battery | Amplifier A7 battery | Amstron AP-1290 battery | Amstron AP-1290F2 battery
- Amstron 12V 9Ah battery | APC BK300 battery | APC BK400 battery | APC BK400B battery | APC BK500 battery | APC BK500M battery
- APC BackUPS Pro BP280S battery | APC BK500MC battery | APC BP280 battery | APC BP2801PNP battery | APC BP280B battery | APC BP280BPNP battery
- APC BP280C battery | APC BK280B battery | APC BK250B battery | APC BK200B battery | APC BackUPS Pro BP280SX116 battery | APC BackUPS Pro BP350U battery
- APC BackUPS Pro BP350UC battery | APC BackUPS Pro BP420 battery | APC BackUPS Pro BP420C battery | APC BackUPS Pro BP420IPNP battery | APC BackUPS Pro BP420S battery
- APC BackUPS Pro BP500CLR battery | APC BackUPS Pro BP500UC battery | APC BackUPS Pro BP700UC battery | APC BK200 battery | APC BP280PNP battery | APC BP280S battery
- APC BP280SX116 battery | APC Powershield CP18C12NA2 battery | APC Powershield CP24U12D battery | APC Powershield CP24U12NA3-F battery | APC Powershield CP36U52 battery
- APC Powershield CP40U48NA3 battery | APC SmartUPS SC420 battery | APC SmartUPS SU420NET battery | APC SmartUPS SUVS420 battery | APC SP500DR battery
- APC SU420NET battery | APC SU420VS battery | APC Powershield CP15U48D battery | APC PCPRO battery | APC PCPER battery | APC BP350 battery | APC BP350U battery
- APC BP420 battery | APC BP4201PNP battery | APC BP420C battery | APC BP420PNP battery | APC BP420S battery | APC BP500 battery | APC BP500CLR battery
- APC BP500U battery | APC BP500UC battery | APC SUVS420 battery | APC BackUPS Pro BP280C battery | APC BackUPS BK250I battery | APC BackUPS BK250 battery
- APC BackUPS BK200B battery | APC BackUPS BK200 battery | APC BackUPS 500MC battery | APC BackUPS 500M battery | APC BackUPS 400B battery
- APC BackUPS 400 battery | APC BackUPS 300 battery | APC BackUPS 280B battery | APC BackUPS 280 battery | APC BackUPS 200 battery | APC RBC2 battery
- APC BE550R battery | APC RBC110 battery | APC BackUPS ES 8 Outlet 500VA battery | APC BE500R battery | APC BackUPS BK250B battery | APC BackUPS BK250EC battery
- APC BackUPS Pro BP280 battery | APC BackUPS PCPER battery | APC BackUPS ES BR500U battery | APC BackUPS ES BE725BB battery | APC BackUPS ES BE700BB battery
- APC BackUPS ES BE650BB-CN battery | APC BackUPS ES BE650BB battery | APC BackUPS BK500MC battery | APC BackUPS BK500 battery | APC BackUPS Pro BP280IPNP battery
- APC BackUPS BK280B battery | APC BackUPS BK300C battery | APC BackUPS BK300X116 battery | APC BackUPS BK350 battery | APC BackUPS BK400 battery
- APC BackUPS BK400B battery | APC BackUPS 250B battery | ATT 450 battery | BB BP8-12 battery | BB HR8-12 battery | Belkin F6C750-AVR battery
- Belkin F6C650-USB-MAC battery | Belkin F6C650-USB battery | Belkin F6C650 battery | Belkin F6C625-SER battery | Belkin F6C625 battery | Belkin F6H650-USB battery
- Belkin F6C525-SER battery | Belkin F6C525 battery | Belkin F6C500-USB-MAC battery | Belkin F6C500-USB battery | Belkin F6C500 battery | Belkin F6C425-SER battery
- Belkin F6C425 battery | Belkin F6C750odmAVR battery | Belkin Regulator Pro Gold 325 battery | Belkin F6C750spAVR battery | Belkin Pro F6C425 battery
- Belkin Pro F6C525 battery | Belkin Pro F6C625 battery | Belkin Pro F6C650 battery | Belkin Pro Gold F6C250-USB battery | Belkin Pro Gold F6C425-SER battery
- Belkin Pro Gold F6C500-USB battery | Belkin Regulator Pro Gold 425 battery | Belkin Regulator Pro Gold 525 battery | Belkin Regulator Pro Gold 625 battery
- Belkin F6H650-SER battery | Belkin F6C550-AVR – Rev.A battery | Belkin F6H650 battery | Belkin F6C350-USB-MAC battery | Belkin F6C350-USB battery
- Belkin BERBC31 battery | Belkin BERBC56 battery | Belkin BU306000 battery | Belkin BU3DC000-12V battery | Belkin F6C1000 battery | Belkin F6C120-UNV battery
- Belkin F6C127-BAT battery | Belkin F6C127-BAT-ATT battery | Belkin F6C325-SER battery | Belkin F6C325 battery | Belkin F6C129-BAT battery
- Belkin F6C1272-BAT battery | Belkin F6C127-BAT-AVR battery | Braun T1100 battery | Casil CA1290 battery | CSB 12V 9Ah battery | Currie Currie Scooter battery
- Currie Currie Bicycles battery | EnerSys NP9-12 battery | Exide EP9-12H battery | Exide EP1234W battery | FIAMM 12FGH36 battery | Freedom 973 (46cc) battery
- Genesis NP9-12 battery | GS Storage PE12V9F2 battery | GS Yuasa PX12090 12V 9Ah battery | GT Scooter GT Scooter battery | Homelite HM20P5E battery
- IBM UPS OP700AVRi battery | IBM UPS OfficePro battery | IBM UPS OP500 battery | IBM UPS OP500AVR battery | IBM UPS OP500AVRi battery
- IBM UPS OP500i battery | IBM UPS OP700 battery | IBM UPS OP700i battery | IBM UPS OP700AVR battery | IBT BT8-12 battery | IE Industrial Energy IE 1285 battery
- IE Industrial Energy IE 1290 battery | Interstate SLA0020 battery | Interstate SLA1088 battery | Interstate 12V 9Ah battery | Leoch LP12-9.0 battery | Merich 350 battery
- Merich 450 battery | Merida PC 500 battery | Merida PC 550 LD battery | Merida PC 550 battery | MCA FC12-9 battery | MGE EX RT battery ( 20 batteries )
- MGE EXB 5/7 battery ( 20 batteries ) | MGE EXB 11RT battery ( 20 batteries ) | MGE 100T Crane UPS battery ( 20 batteries ) | Mongoose Mongoose Scooter battery
- MSB 12-7.6 battery | Neata NT12-9 battery | Panasonic LC-R129 battery | Panasonic UP-RW1245P2 battery | Panasonic LC-R129CHI battery | Panasonic UP-RW1245P1 battery
- Panasonic UP-RW1245P-250 battery | Panasonic LC-R129P61 battery | Panasonic PCR129P1 battery | Panasonic LC-R129P1 battery | Panasonic LC-R129PU1 battery
- Panasonic LC-R129CH1 battery | Panasonic 12V 9Ah battery | Panasonic UP-RW1245 battery | Power Equipment Brush Mower battery
- Power Equipment 46 Lawn Mower battery | Power Equipment Field battery | Power-Sonic 12V 9Ah battery | Power-Sonic PS-1290 battery | Razor E300 battery
- Razor Ground Force Go Kart battery | Razor Rebellion Chopper battery | Razor E300S battery | Razor Pocket Rocket PR200 battery | Razor Pocket Mod Bistro battery
- Razor ePunk battery | Razor Mini Electric Chopper battery | Razor 132E battery | Razor Dirt Rocket MX350 battery | Razor E200S battery | Razor 131E battery
- Remco RM 12-8 battery | Rhino SLA9-12/T25 battery | Rhino SLA 9-12 battery | Ritar 12V 8Ah battery | Ritar RT1290 battery | Ritar 12V 9Ah battery | Schwinn Schwinn Scooter battery
- Silver Bomber Silver Bomber Scooter battery | Sunnyway SW1290 battery | Tempest TR9-12 battery | Tempest TR8.5-12 battery | Toshiba 1600XP on-line UPS battery
- Toshiba 1600XP 3.6KVA battery (2 pack ) | Toshiba 1600XP 6KVA battery (3 pack ) | Toshiba 1600XP 8KVA battery (4 pack ) | Toshiba 1600XP 10KVA battery (4 pack )
- Toshiba 1600XP 14KVA battery (8 pack ) | Toshiba 1600XP 18KVA battery (8 pack ) | Toshiba 1600XP 22KVA battery (8 pack ) | Toshiba 1600XP # 51896-FS battery (5 batteries each pack )
- Tripp Lite BCPRO1400 battery | Tripp Lite BCINTERNET550 battery | Tripp Lite BCINTERNET500 battery | Tripp Lite BCINTERNET450 battery | Tripp Lite BC500 LAN battery
- Tripp Lite BC420 battery | Tripp Lite BC450 battery | Tripp Lite BC400 Standby UPS battery | Tripp Lite BC400 battery | Tripp Lite BC3348 battery | Tripp Lite Internet Office 450 battery
- Tripp Lite InternetOffice 700 battery | Tripp Lite BC Internet 500 battery | Tripp Lite BC Internet 450 battery | Tripp Lite BC Personal 420 battery | Tripp Lite BC Personal 450 battery
- Tripp Lite BC300 Internet battery | Tripp Lite BC 400 battery | Tripp Lite BCPERS450 battery | Tripp Lite BC325A battery | Tripp Lite Smart 280 battery | Tripp Lite OmniSmart 450 battery
- Universal 40748 battery | Universal D5779 battery | Universal UB1290F2 battery | Universal UB1280F2 battery | Vision 6FM9 battery | Vision CP1290 battery | Whizbang Whizbang Scooter battery
- X-Treme XG-470 battery | X-Treme X-500 battery | X-Treme X-250 battery | X-Treme XP-490 Bike battery | Xcooter Tornado XC505GT2 battery | Xcooter Tornado XC500GT2 battery
- Yuasa 12V 7.5Ah battery | Yuasa NP9-12 battery | Yuasa 12V 9Ah battery | Yuasa NPX35-250 battery | SR12009 (12V9AH) battery
