Description

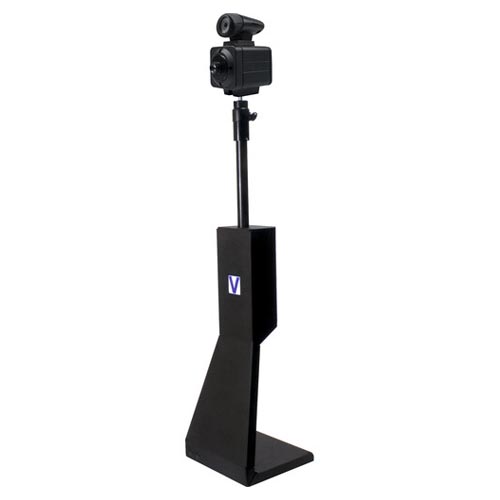

Designed to capture images for use on facial photo IDs, the Full HD FLASH-SYNC Webcam System from Videology uses a synchronized LED flash to deliver high-quality images.
- A manual dial allows for customized flash intensity, while manual focus comes set at 4 to 8′, but may also be adjusted. A 1/2.7″ progressive scan sensor can capture stills or video at resolutions of up to 1920 x 1080 at 30 fps. Its 12mm wide-angle lens provides a 40 x 30° angle of view, so you’ll capture a large image area.
- The camera has a lux rating of 0.1 lux thanks to an f/2.0 aperture that helps it capture images in low light.
- On its bottom, an integrated tripod thread makes mounting easy. This camera may be used with Windows, Mac, Linux, and Android devices. Included is a 6″ long 2.5mm stereo cable, a 10′ mini-USB 2.0 to USB Type-A cable that provides bus power, and a stand that attaches to the integrated 1/4″-20 tripod mount.
General Features:
- Synchronized USB-powered LED flash for consistent, high-quality images in most environments.
- Full HD progressive scan sensor for 1920 x 1080 still images.
- Both compressed (MJPEG) and raw video (YUY2) outputs supported.
- Still image capture only with MJPEG.
- USB 2.0 provides power, camera, and flash control.
- UVC compliant.
- Convenient manual dial allows for customized flash intensity.
- 1/4″-20 tripod mount is attached to the base.
- Full SDK available for integration into customer applications.
- TWAIN compatible.
- A neutral gray backdrop is recommended
Technical Specifications:
- Image Sensor Size: 1/2.7″ | Pixel Size: 3 x 3 μm
- Resolution and Frame Rate: MJPEG Compressed (Still Capture Choices) – 1920 x 1080 at 30 fps | 1280 x 720 at 30 fps | 800 x 600 at 30 fps | 640 x 480 at 30 fps. YUY2 Uncompressed (Video Capture Choices) – 1920 x 1080 at 5 fps | 1280 x 720 at 10 fps | 800 x 600 at 20 fps | 640 x 480 at 30 fps.
- Sensitivity: 0.1 Lux, f/2.0 | Signal to Noise Ratio: >65 dB | Shutter Modes: Electronic Rolling Shutter
- Field of View: 40 x 30° | Video Output: USB 2.0 | Power Supply: 5 VDC via USB 2.0 | Power Consumption: <200 mA
- Still Capture: Selectable | Flash: Selectable via Videology Viewer or SDK | Focus: Manual (Preset for 4.0 to 8.0′ / 1.2 to 2.4 m)
- Adjustable Settings: Contrast, Brightness, Hue, Resolution, Gamma, White Balance, and Exposure | Gain: Fixed
- Software: SFT-15003 Rev 2.2.0.1 or Above: Videology Viewer with Active Features | SFT-10011 Rev 2.1.26 or Above: TWAIN Data Source
- Hardware: Requires USB 2.0 or USB 3.0 Backward-Compatible UVC Compliant Ports
- Operating Systems: Windows 10, 8, 7, and XP | Linux 2.6.26 | Android 4.0 or Higher (Potential) | macOS 10.4.8 or Higher (Potential)
- Lens: 3MP M-12 Board Mount: Customized Precision 12mm Focal Length with High Uniformity, MTF Matches to Sensor. Depth of Field Optimized for Facial Still Image Capture (4.0 to 8.0′ / 1.2 to 2.4 m)
- Environmental : Operating Temperature – 5 to 131°F / -15 to 55°C
- Dimensions: 24 x 5.18 x 4.8″ / 609.6 x 131.4 x 122 mm | Weight: 3.5 lb / 1.6 kg | Package Weight: 4.265 lb
- Box Dimensions (LxWxH): 24.6 x 6.3 x 6.2″
In the Box:
- Videology Full HD FLASH-SYNC Webcam for Facial Photo IDs System
- Mini-USB 2.0 to USB Type-A Cable (10′)
- 2.5mm Stereo Cable (6.0″) | Stand
