Description

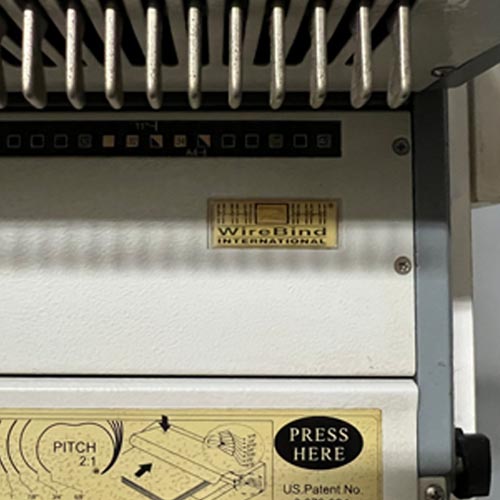

- Fixed punching bar with 40 retractable pins, holes 4,0 x 4,0 mm. square or dia. 4,5 mm. round, for all the diameters in 3:1” pitch.

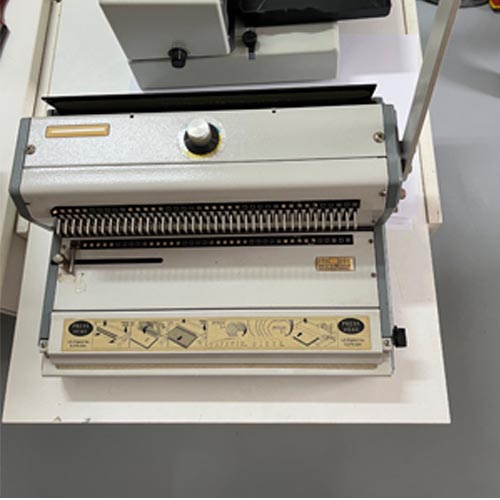

- Condition: Used but well-kept and maintained 100% functional

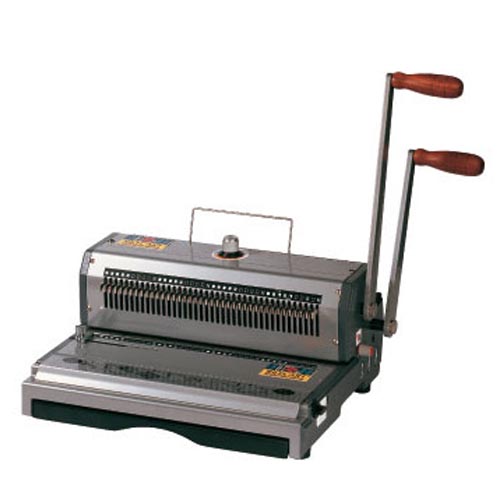

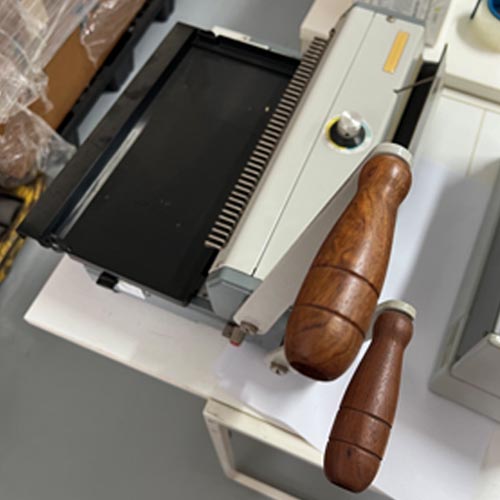

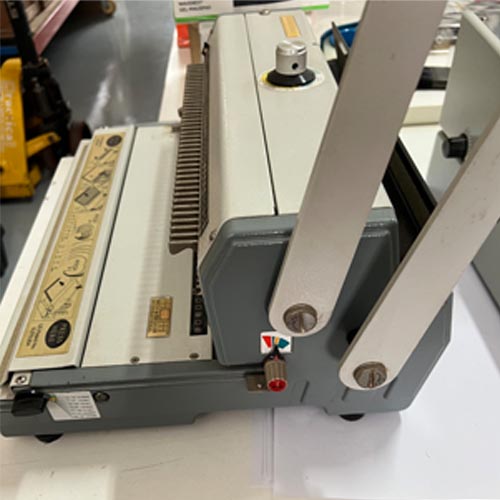

- The Wire Bind 3 is a popular desktop Wire Binding machine. It features a manual punch with an easy wire insertion slot and a fixed punching bar with 40 retractable pins. It is ideal for binding many types of documents, including reports, booklets, manuals, menus, notepads, calendars and more.
- Manual paper punch with manual wire insertion and built-in closer.
Features:
- Manual 3:1 pitch punch (34 holes per A4 sheet)
- Punch Capacity: up to 20 sheets (80gsm)
- Document Capacity: up to 125 sheets (based on 80gsm)
- Closing Capacity: 4.8mm to 32mm

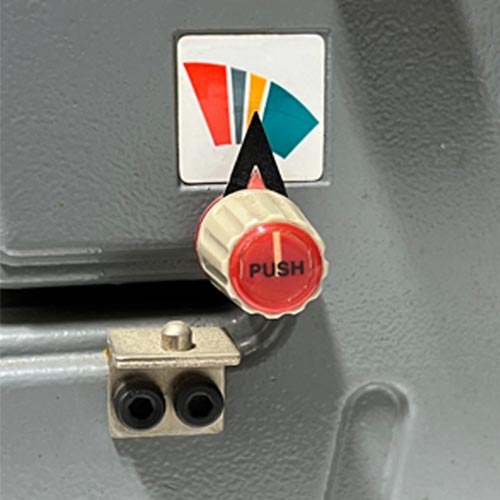

- Comb size selector for an easy perfect closing
- Allows for binding of A3 documents and non-standard paper sizes
- Two-handle operation: one for punching, one for wire closing
How does it works:
- It is very easy to bind a document with the Wirebinder.
- First you punch the block of sheets using the longer handle.
- Then you insert the cut length into the holes: this is easy to do, just insert the wire into the holding groove and fit the sheets onto the wire.
- Lastly, you just have to close the wire using the other handle.
Features:

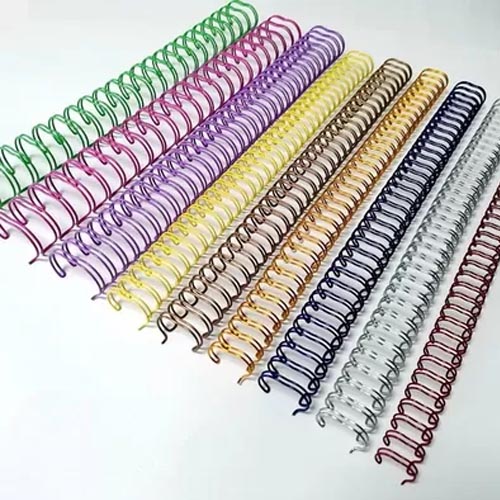

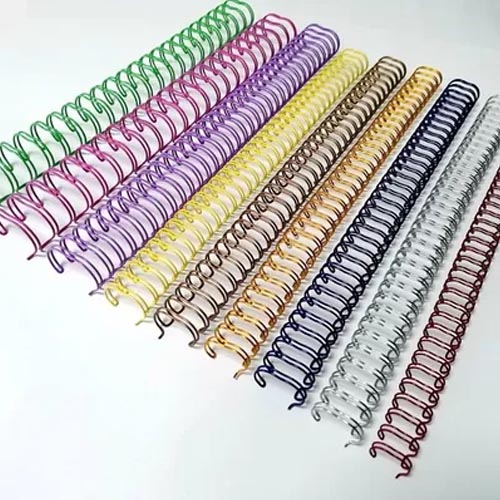

- Uses wires in cut-length.
- Maximum binding length: 350 mm.
- Maximum punching thickness: 1,5 mm. per stroke (20 sheets of 70 g.).
- Easy wire insertion slot.
- Adjustable binding edge.

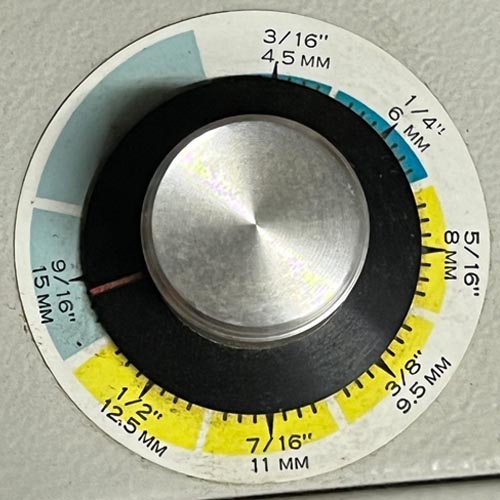

- Gauge to check the document’s binding diameter.
- Lower drawer to collect wasted paper.
Technical Specifications:
- Dimensions: 520mm (H) x 420mm (W) 270mm (L) | Weight: 12kg
