Description

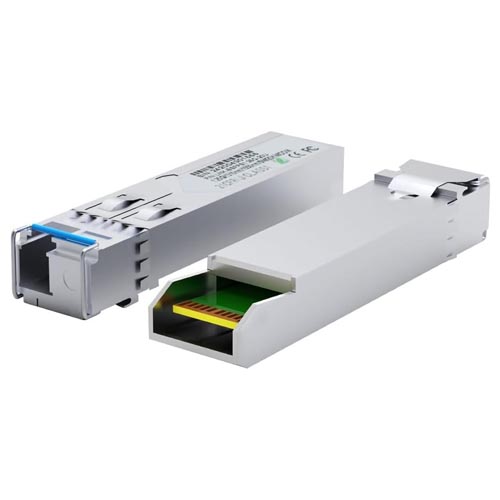

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.

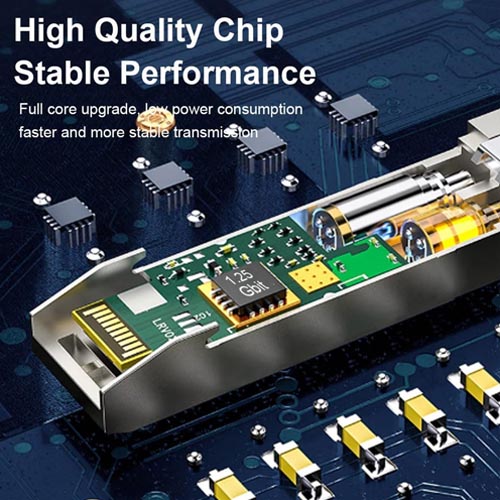

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features:
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1310nm FP laser, 1550nm DFB laserand PIN photodetector for 20km transmission

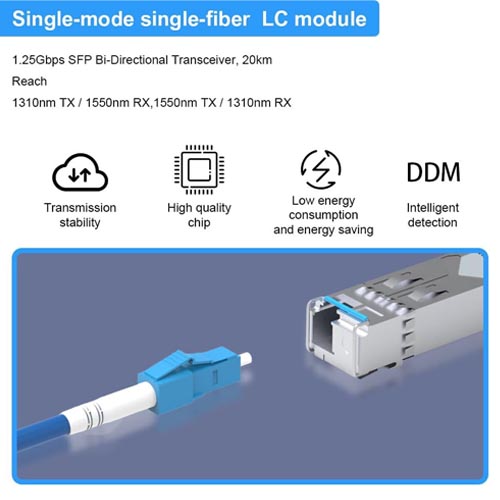

- Compliant with SFP MSA and SFF-8472 with simplex LC or SC Receptacle
- Digital Diagnostic Monitoring: Internal Calibration or External Calibration
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature range of
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C
- Commercial Type: LNK-BSFP-1.25G-20U/D
Technical Information:
- Brand: Zhpuostd
- Package dimensions: 12.7 x 10.16 x 2.54 cm; 226.8 g
