Description

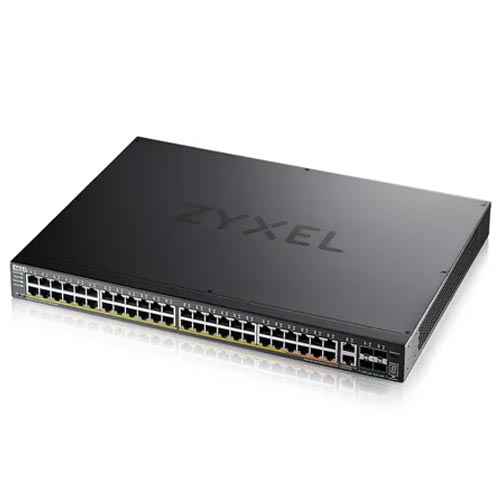

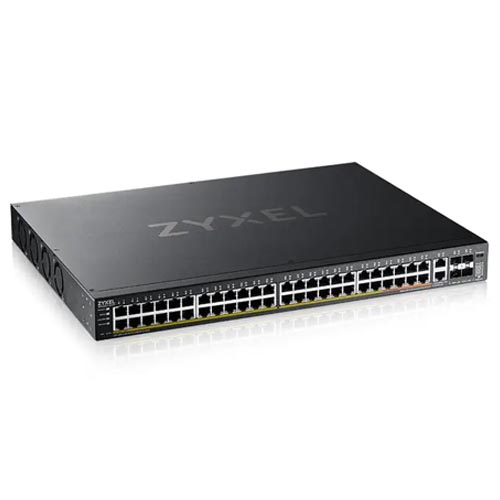

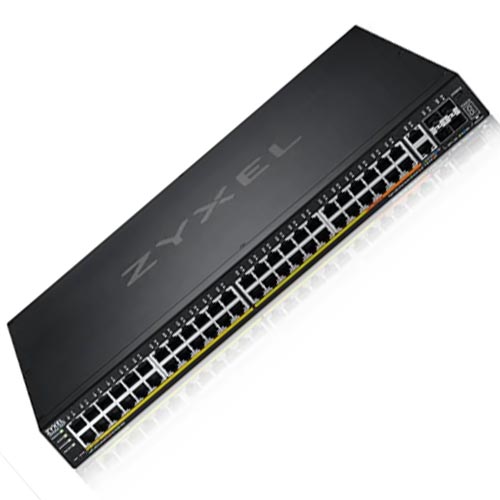

- Grow your organization’s network capacity with the XGS2220-54HP 50-Port 1G / 10G PoE++ Compliant Managed Network Switch from ZyXEL. Designed for high flexibility, eight of the 48 Gigabit-speed Ethernet ports can deliver up to 60W of power to compatible PoE devices such as security cameras and advanced wireless access points.
- The remaining 40 ports support up to 30W of power each with a total budget of 600W.
- This Layer 3 switch also includes two 10G, 60W RJ45 uplink ports alongside dual 10 Gb/s SFP+ fiber slots, making this switch ideal for converged networks. A one-year Nebula Pro subscription is included for cloud-based management.
Performance:
- The XGS2220-54HP delivers fast and reliable data transfers with a 216 Gb/s switching capacity and 161 Mpps forwarding rate.

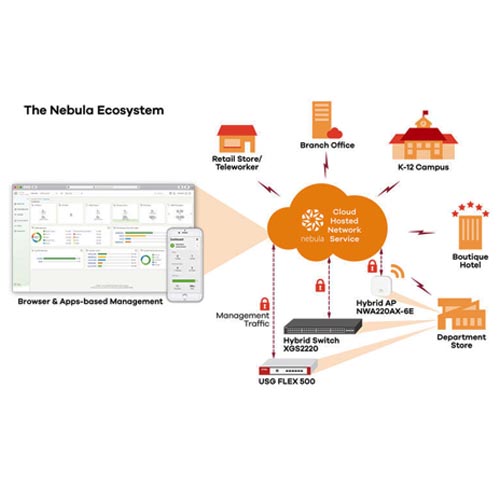

- Nebula Pro Management
- The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1-year Pro Pack bundled. Nebula provides both an intuitive web interface and a mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.
- Dedicated Networked AV Mode
- The XGS2220 series includes a tailor-made networked AV mode when used in standalone mode. You can switch interfaces to simplify the installation of AVoIP with an intuitive wizard that prompts high level requirements for this type of network infrastructure. Leveraging from AI intelligence, the switch is then able to remove the complexity by applying all the necessary details to set up a professional AVoIP deployment in minutes. When deployed in Networked AV mode, the switch gives you a dedicated dashboard allowing quick access to the key AV network elements such as IGMP and IP information as well as fast access to configuration functions often associated with AVoIP deployments.
Technical information:
- Inputs/Outputs: 40x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) | 8x RJ45 Gigabit Ethernet PoE++ (60 W, 802.3bt Type 3) | 2x RJ45 10 GbE PoE++ (60 W, 802.3bt Type 3) |
4x SFP+ 10 Gb - Switching Bandwidth: 216 Gb/s
- PoE Power Budget: 600 W
- Layer Services Supported: Layer 2, Layer 3, Layer 4
- Supported Protocols: SSID | Port Mirroring | DHCP Server | Auto-MDIX/MDI | IGMP Snooping | IPv6 | Auto-VoIP | RADIUS | IPv4 | MAC Filtering
- Queuing: Weighted Round Robin (WRR)
- Jumbo Frames Support: 9000 Bytes
- MAC Address Table Size: 32K
- Security Features: DHCP Snooping | RADIUS Authentication | Storm Control
- Forwarding Rate: 161 Mpps
- Switching Bandwidth: 216 Gb/s
- Packet Buffer: 2 Mb
- Flash Memory: 64 MB
- Memory: 1 GB
- Electrical – PoE per Port: 50 W
- Electrical – PoE Power Budget: 600 W
- Power Draw: 754.11 W (Max) | 29.9 W (Standby)
- Input Power: 100 to 240 VAC, 60 / 50 Hz
- Power Supply Type: Internal
- Certifications: BSMI, CE, FCC, RoHS
- Operating Conditions: -4 to 122°F / -20 to 50°C at 10 to 95% Humidity
- Storage Conditions: -40 to 316°F / -40 to 158°C at 10 to 90% Humidity
- Cooling System: Fan (Noise Level 50.2 dB)
- Mean Time Between Failures (MTBF): 0.2 Million Hours
- Indicator Lights: Yes
- Rack Mountable: Yes
- Dimension: 17.36 x 12.99 x 1.73″ / 440.94 x 329.95 x 43.94 mm
- Weight: 11.02 lb / 5 kg
Package Content:
- ZYXEL XGS2220-54HP 50-Port 1G / 10G PoE++ Compliant Managed Network Switch
- Power Cable
- Rack Mounting Kit
- Nebula Pro Subscription (1-Year)
- Limited Lifetime Warranty
